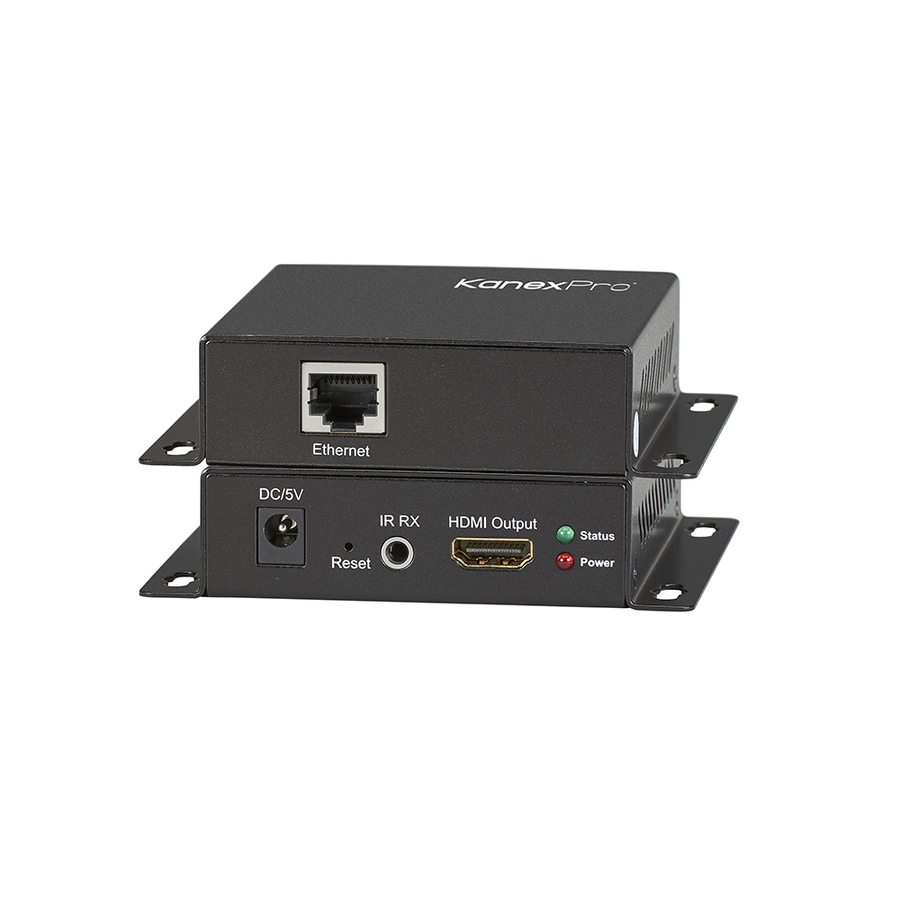

The KanexPro NetworkAV 120M Receiver is a simple and cost-effective decoder (receiver) which lets you extend full HD 1080p/60 HDMI signals from the encoder remotely over IP up to 120 meters. The IP Decoder can be used as end to join multitude of displays when connected on the IP network. This HDCP compliant decoder can also be cascaded or daisy-chained to many layers by adding a 10G Ethernet switches supporting TCP/IP protocols.
Applications:
Ideal for various applications such as digital signage, display signage and lobby, commercial AV systems, classroom projection systems and corporate video sharing & training
- 5 V DC power supplies included
- Support TCP/IP protocol
- Metal enclosure built with mounting ears
- With wideband IR (38-56kHz) control to the source
- HDCP compliant
- Can be cascaded for many layers by adding 10G more Ethernet switches
- Supports Point-to-Point, Point-to-Many and Many-to-Many network configurations
- AV over IP Decoder only
- Extends 1080p HDMI signals up to 120m over a single UTP CATx cable
| Brand | |
|---|---|
| Brand | KanexPro |
| GPU / Graphics | |
|---|---|
| Graphics Modes | Full HD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Receiver Width | 3.68" |
| Receiver Weight (Approximate) | 7.76 oz |
| Receiver Height | 0.97" |
| Receiver Depth | 4.07" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 393.70 ft |
| Manufacturer | KanexPro |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
