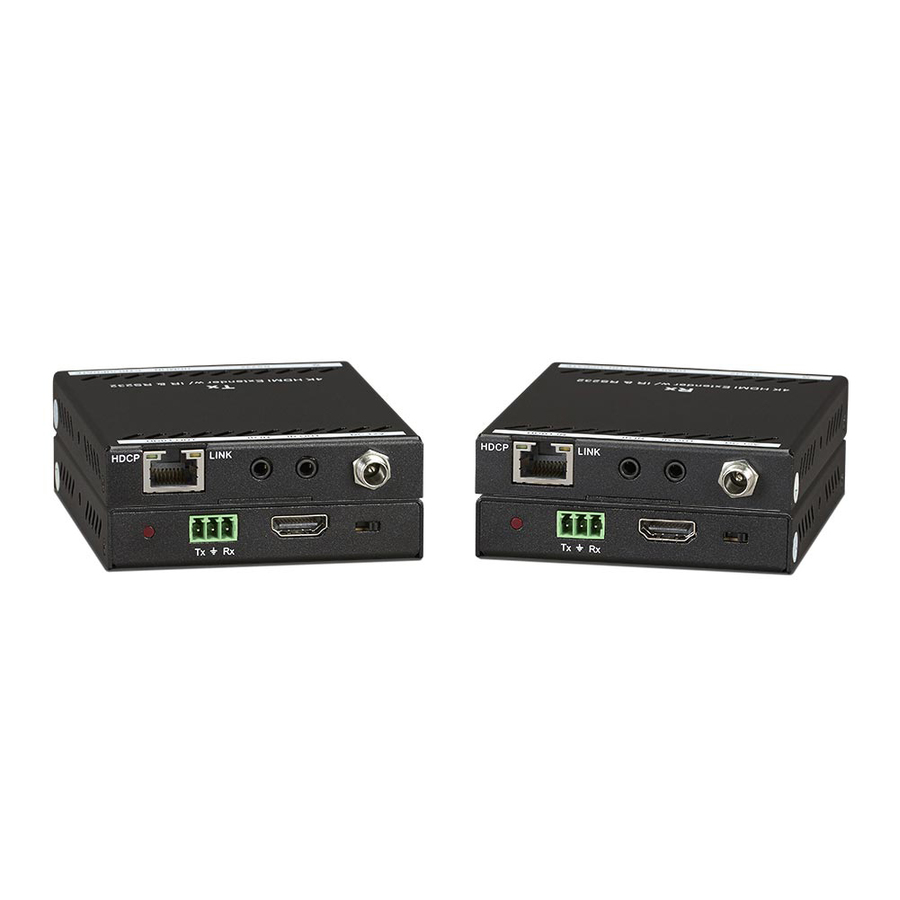

The KanexPro EXT-HDBT70C is an HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. Moreover, the extender set supports PoC (power over cable) from either side of the sender or receiver, CEC, bi- directional RS232 & IR control.
Applications
Perfect for extending and routing digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.
Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
- Supports CEC/IR/RS-232 pass-thru
- Bi-directional RS-232 & IR control
- HDCP 2.2 & EDID compliant
- Bandwidth 10.2 Gbps
- Bi-directional PoH (power over cable)
- Video resolutions from 1080p/60@48bit
- Supports Ultra HD 4K@30Hz resolutions &
- Extend 4K/30 up to 40m (131ft.)
- Basic point-to-point HDMI extender over HDBaseT
- Extend full HD 1080p up to 70m (230ft.)
| Brand | |
|---|---|
| Brand | KanexPro |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 8.80 oz |
| Form Factor | Rack-mountable |
| Transmitter Depth | 3.30" |
| Transmitter Height | 0.60" |
| Transmitter Width | 4.17" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 229.66 ft |
| Manufacturer | KanexPro |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6a |
