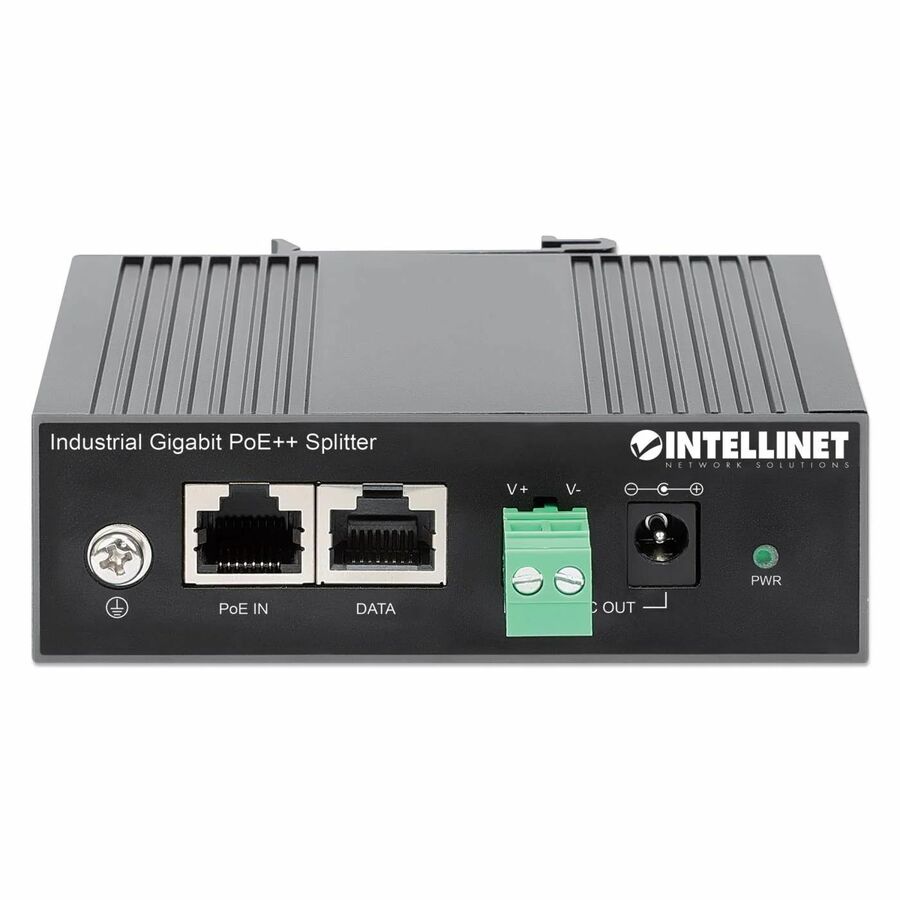

Intellinet Industrial Gigabit PoE++ Splitter 60 W

$ 74.49 $ 74.49
$ 74.49

$ 74.49 / Units
  • Brand
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Protection Type
  • Form Factor
  • Length
  • Mount Type
  • Output Ports
  • Input Ports
  • Input Voltage
  • Maximum Output Voltage
  • Maximum Output Current
  • Environmental Compliance
  • Certifications & Standards
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Compatibility
  • Manufacturer Website Address
  • Maximum Output Power
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Turn a higher-power PoE link into separate DC/terminal-block power and Gigabit data connections

Need power but don't have an outlet? Take it from your PoE network with the Intellinet Industrial Gigabit PoE++ Splitter. With a simple Ethernet cable connected to your PoE++ Switch or injector, this Splitter can give up to 51 W to a non-PoE device in tough or industrial environments via your choice of output - a 2-pin terminal block or a DC jack - and still provide a gigabit network connection. It's a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it's cheaper in both time and money than hiring an electrician.

  • Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
  • Two DC outputs with power up to 12 V / 4.25 A / 51 W via 2-pin terminal block or DC jack
  • One RJ45 input port up to 60 W from an IEEE 802.3bt/at/af-compliant
  • PoE injector or PoE switch (PSE)
  • One RJ45 output port with 10/100/1000 data rates
  • IP30-rated metal housing to withstand harsh industrial conditions
  • Suitable for extreme operating temperatures of -40 to 75�C (-40 to 167�F)
  • Option for DIN-rail installation
  • Distance support: up to 100 m (328 ft.)
  • Short-circuit, overload and high-voltage protection
  • Grounding point to protect equipment from external electrical surges
  • ESD protection up to 8 kV (air) and 6 kV (contact)
  • Port surge protection up to 2 kV
  • Fully NDAA-compliant
  • Three-year warra
Brand
Brand IC INTRACOM
Power & Battery
Input Voltage 57 V DC
Maximum Output Voltage 12 V DC
Maximum Output Current 4.25 A
Maximum Output Power 51 W
Size / Dimensions
Form Factor Din Rail
Mount Type DIN Rail Mountable
General Features
Protection Type Surge Protection
Manufacturer IC INTRACOM
Misc Ports
Output Ports 1 x RJ-45
Input Ports 1 x RJ-45
