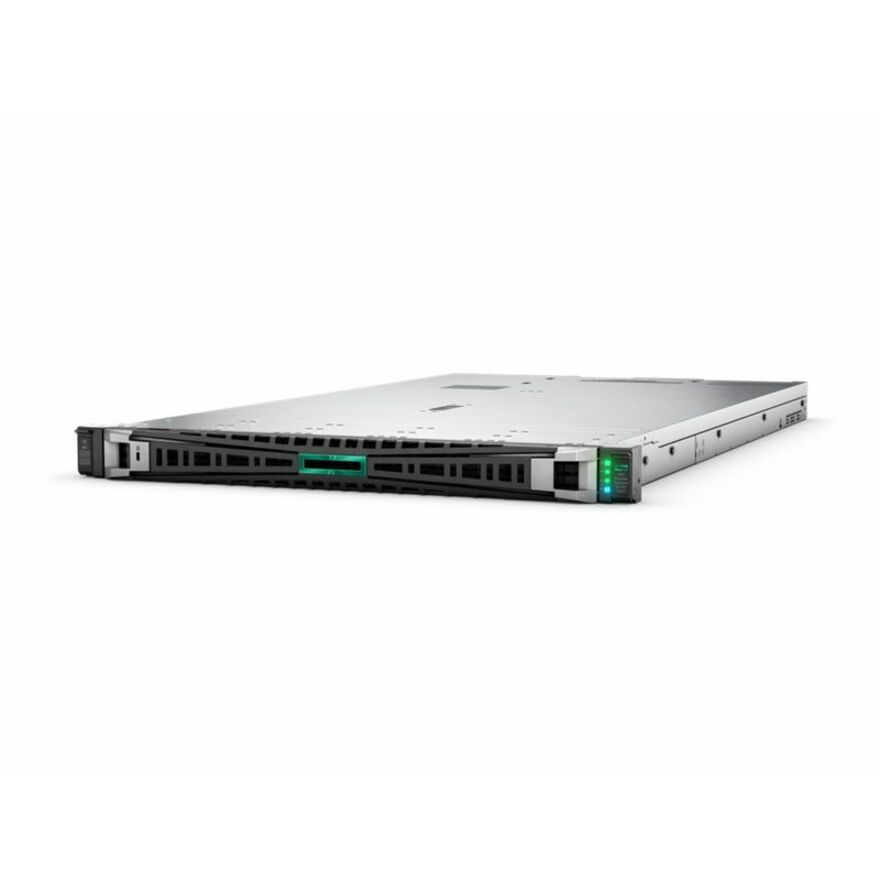

HPE ProLiant DL360 Gen12 1U Rack Server - 1 x Intel Xeon 6505P 2.20 GHz - 64 GB RAM - 960 GB SSD - (2 x 480GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS, NVMe Controller

11,463.49 11,463.49
11,463.49

11,463.49 / Units
  • Brand
  • Processor Manufacturer
  • Processor Type
  • Processor Model
  • Number of Processors Installed
  • Number of Processors Supported
  • Depth
  • Weight (Approximate)
  • Number of Occupied Memory Slo
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Energy Efficiency Certificati
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Width
  • Solid State Drive Configurati
  • Number of Power Supplies Supp
  • Number of Power Supplies Inst
  • Standard Memory
  • Graphics Memory Capacity
  • Total Solid State Drive Capacity
  • Number of Solid State Drives
  • Chipset Manufacturer
  • Security Features
  • Remote Management
  • Remote Management Controller
  • RAID Supported
  • Redundant Power Supply
  • Hot Swappable Power Supply
  • Hot Swappable Bays
  • Total Number of USB Ports
  • Network (RJ-45)
  • VGA
  • Number of VGA Ports
  • PCI Express Details
  • Number of Total Expansion Bays
  • Number of Internal 2.5" Bays
  • Number of SFF Bays
  • Total Number of Expansion Slots
  • Form Factor
  • Rack Height
  • Processor Core
  • Processor Speed
  • Cache
  • Memory Technology
  • Total Number of Memory Slots
  • Error Checking
  • Signal Processing
  • Maximum Memory Supported
  • Solid State Drive Interface
  • Ethernet Technology
  • RAID Levels
  • Input Voltage
  • Controller Type
  • Controller Model
  • Energy Star
  • Environmental Compliance
  • Energy Efficiency Compliance
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Line
  • Manufacturer Website Address
  • Power Source
  • Maximum Power Supply Wattage
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Are you looking for a compact, rack-optimized two-socket server that supports hybrid cloud workloads? The HPE ProLiant Compute DL360 Gen12 is a compact 1U 2P server that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by Intel® Xeon® 6 processors with up to 144 cores and up to 8 TB of memory as well as 20 EDSFF E3.S NVMe drives, the HPE ProLiant Compute DL360 Gen12 is an ideal hybrid cloud platform for enterprise applications and workloads. This server also provides extreme scalability through a hybrid front storage cage that supports not only SFF and E3.S drives, but also an OS Boot device and two front OCP NICs as optional. The HPE ProLiant Compute DL360 Gen12 is engineered for your future, with next-level security, optimized performance and efficiencies, and automated, AIdriven productivity.

Features | Next-Level Security

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Compute Gen12 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements built into our DNA. With the silicon root of trust from HPE and a zero-trust security framework to ensure firmware integrity, this server continuously detects if it is compromised and is prevented from booting if malicious code is found. Additionally, this server is safeguarded with default IDevID certificates. HPE ProLiant Compute servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations. The HPE ProLiant Compute DL360 Gen12, powered by Intel® Xeon® 6 processors, adds hardware- and software assisted security features, including Intel® Software Guard Extensions (SGX) for application isolation and Trusted Domain Extensions (TDX) for VM isolation. HPE iLO 7 supports quantum-resistant (PQC) algorithms and signs HPE ProLiant Compute Gen12 firmware with algorithms approved by CNSA 2.0, which enhances resilience against potential future attacks by quantum computers.

Optimized Performance and Efficiency

An excellent choice for compute and data storage demanding workloads requiring maximum core count, GPU capabilities, and network and I/O bandwidth. Powered by Intel® Xeon® 6 processors with next-generation technology including 16 DIMM channels per processor that supports up to 144 cores and up to 8 TB of DDR5 memory at speeds up to 6400 MT/s. Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 3 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency. HPE iLO 7 provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs. Choice of three cooling options - air-cooling, closed loop liquid cooling for high performance processors, and direct liquid cooling for performance and energy efficiency to support sustainability initiatives.

  • 2 processors supported for enhanced system performance, ensuring scalability and reliability for enterprise workloads
  • With 64 GB memory, improve system performance to execute complex applications smoothly and shorten processing time
  • 960 GB SSD keeps programs active and resumes your system from suspension in seconds, delivering seamless productivity
  • 800 W power supply unit (PSU) fulfills system power needs, ensuring smooth operation under heavy workloads
  • Intel Xeon 2.20 GHz processor provides enterprise-grade performance with built-in security and remote management capabilities
  • Rack form factor offers easy deployment and streamlined usage, enhancing operational efficiency in server environments
  • RAID provides redundancy to safeguard data during drive failures, ensuring maximum dependability and uninterrupted operations
  • DDR5 SDRAM memory technology enables efficient data movement across CPU cycles, improving throughput for demanding server workloads
  • Gigabit Ethernet enables high-capacity data transfer, improving
Brand
Brand Hewlett Packard Enterprise
CPU / Processor
Processor Manufacturer Intel
Processor Type Xeon
Processor Model 6505P
Number of Processors Installed 1
Number of Processors Supported 2
Processor Core Dodeca-core (12 Core)
Processor Speed 2.20 GHz
Cache 48 MB
GPU / Graphics
Graphics Memory Capacity 16 MB
Memory / RAM
Number of Occupied Memory Slo 2
Standard Memory 64 GB
Memory Technology DDR5 SDRAM
Total Number of Memory Slots 32
Error Checking ECC
Signal Processing Registered (Buffered)
Maximum Memory Supported 8 TB
Storage
RAID Levels 0 , 1 , 5 , 6 , 10 , 50 , 60
Solid State Drive Configurati 2 x 480GB
Total Solid State Drive Capacity 960 GB
Number of Solid State Drives 2
RAID Supported Yes
Hot Swappable Bays Yes
Solid State Drive Interface Serial ATA/600
Power & Battery
Number of Power Supplies Supp 2
Number of Power Supplies Inst 2
Redundant Power Supply Yes
Hot Swappable Power Supply Yes
Input Voltage 230 V AC
Power Source Power Supply
Maximum Power Supply Wattage 800 W
USB Ports
Total Number of USB Ports 5
Ethernet Port
Number of Network (RJ-45) Por 4
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack
Rack Height 1U
General Features
Remote Management Controller HPE OneView Standard (requires download) , HPE iLO7 Standard with Intelligent Provisioning (embedded)
Chipset Manufacturer Intel
Remote Management Yes
Controller Type NVMe
Controller Model MR408i-o
Manufacturer Hewlett Packard Enterprise
Expansion Slots
PCI Express Details 3 PCIe Gen5 slots (x16 lanes/each)
Total Number of Expansion Slots 3
Drive Bays
Number of Total Expansion Bays 8
Number of Internal 2.5" Bays 8
Number of SFF Bays 8
Video Ports
VGA Yes
Number of VGA Ports 1
Compliance & Certification
Energy Efficiency Certificati ENERGY STAR 4.0
Energy Star Yes
Energy Efficiency Compliance Energy-related Products Directive Lot 9 (ErP Lot 9)
HPE ProLiant DL360 Gen12 1U Rack Server - 1 x Intel Xeon 6505P 2.20 GHz - 64 GB RAM - 960 GB SSD - (2 x 480GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS, NVMe Controller
