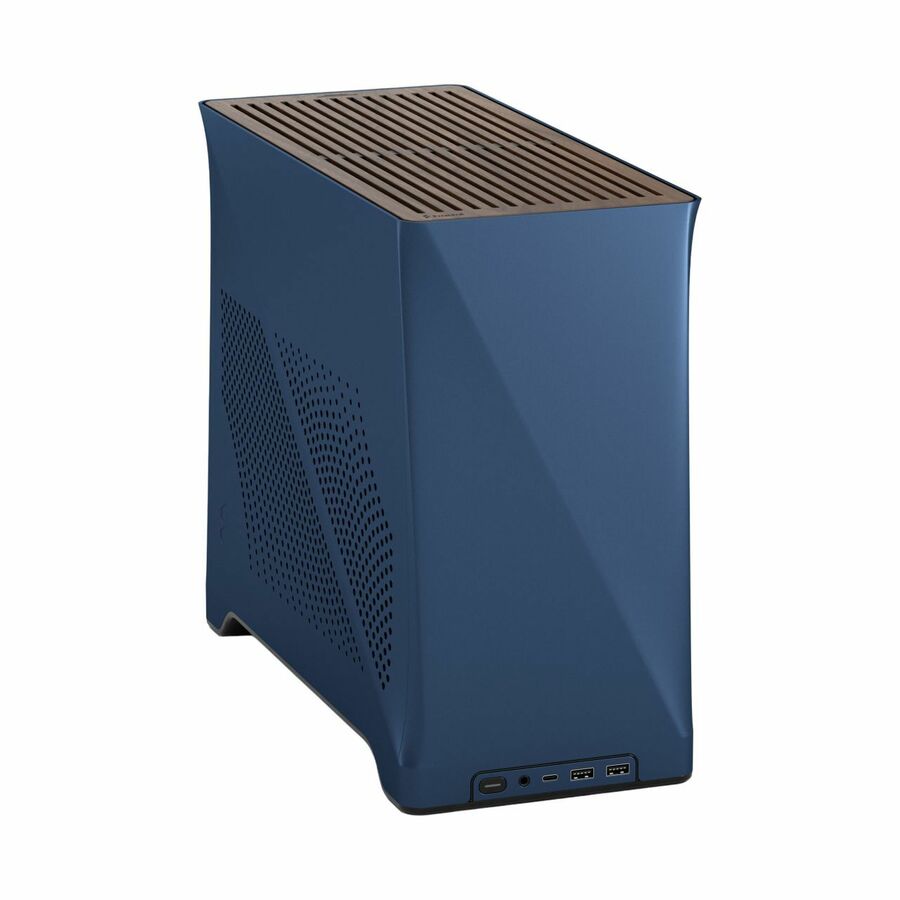

Era 2 is an evolution of our iconic small form factor case - melding design innovation with engineering prowess.
Elegance in every detail
Iconic design
Enjoy a sleek, sculpted aesthetic complete with an anodized aluminum exterior and an FSC-certified walnut top panel.
Streamlined gaming
Install a graphics card up to 326 mm in length and pair it with a radiator up to 280 mm for powerful SFF gaming.
Ventilated performance
Features ample ventilation engineered to direct airflow through the case and includes two Aspect 12 PWM fans.
Smooth access
Enjoy tool-free access with a magnetic top panel, an exterior which slides off and a push-to-release top bracket.
Flexible interior
Adapt your build towards CPU cooling space or graphics card width with a slidable central wall offering 15 mm of flexibility.
Ready to connect
Includes a PCIe 4.0 riser cable pre-installed in the case and features dedicated mounts for up to four 2.5" drives.
Front-facing I/O
Features an illuminated power button and two USB ports for connecting devices, including one USB Type-C 20Gbps.
- Sleek, sculpted design with an anodized aluminum exterior and solid walnut top panel.
- Compatible with graphics cards up to 3 slots with 326 mm in length and 61 mm in thickness.
- Optimized for AIO watercoolers with support for radiators up to 280 mm.
- Includes two Aspect 12 PWM fans and features ample ventilation for airflow performance.
- Tool-free access with an exterior shell which slides off and a push-to-release top bracket.
- Offers 15 mm of internal build flexibility provided by a stepless, slidable central wall.
- Includes a pre-installed PCIe 4.0 riser cable and dedicated mounts for up to four 2.5" drives.
- Easy-access front I/O panel with two USB ports, including one USB Type-C 20Gbps.
| Brand | |
|---|---|
| Brand | Fractal Design |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 12.83" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| USB Port Details | 2 x USB 3.0 |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio Out Ports | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| General Features | |
|---|---|
| Motherboard Supported | ITX |
| Cooler Type | Fan Cooler |
| Installed Fan Size | 4.02" |
| Installed Fan Size Details | 2 x 120mm |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 2.76" |
| Manufacturer | Fractal Design |
| Number of Fans Supported | 2 |
| Number of Fans Installed | 2 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 3 |
| Drive Bays | |
|---|---|
| Number of Internal 2.5"/3.5" | 0 |
| Number of Internal 2.5" Bays | 4 |
| Number of Internal 2.5"/3.5" Bays | 0 |
| Number of Internal 5.25" Bays | 0 |
