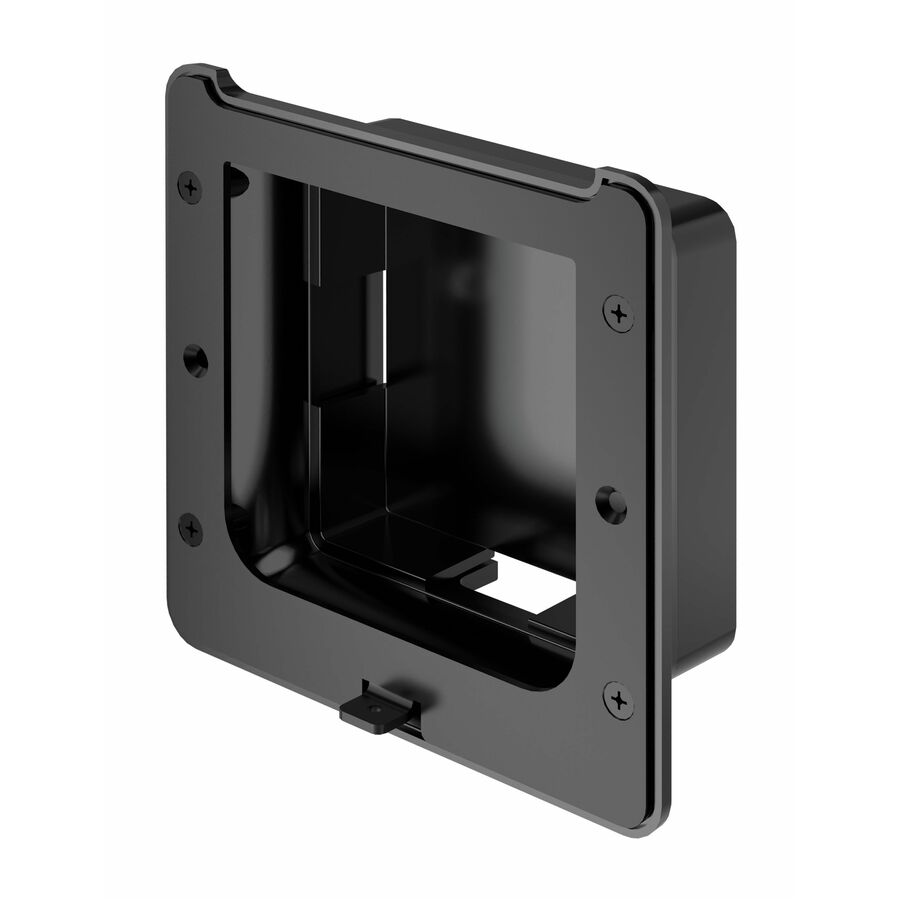

TheTSS-470E-MSMK-B-Tmultisurface mount kit provides a versatile surface mounting solution for aTSS-470E-B-Tdesk scheduling touch screen. Using the multisurface mount kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. The TSS-470E-MSMK-B-T is ideal for mounting at the entrance to a hoteling space for desk scheduling applications.
The TSS-470E-MSMK attaches securely to a flat, smooth surface without screws using the included peel-and-stick adhesive rear housing. For a finished appearance when mounted to a transparent glass wall, an adhesive rear label is provided, which simply affixes to the opposite side of the glass behind the unit. A template is provided for the MSMK to help ensure that it is level and properly aligned with the surface. A security screw is also provided to prevent unauthorized removal of the touch screen from the MSMK.
The TSS-470E-MSMK rear housing provides four cutout holes (on the top, bottom, and sides of the housing) for running concealed cables to the touch screen using adhesive-backed raceway (not included). A trim ring with an opening for the raceway is attached to the rear housing to conceal any unused cutouts.
Key Features
- Permits flush mounting a TSS-470E touch screen to virtually any flat, smooth surface
- Ideal for mounting at the entrance to a hoteling space for desk scheduling applications
- Supports glass surface and partition mounting
- Secure, screwless installation using the peel-and-stick adhesive rear housing
- Security screw provided to prevent unauthorized removal of the touch screen
- Available in black textured finish
- Surface Mount offers a dependable mounting solution with maximum usage and accessibility productivity
- Magnificent Textured Blacksmall## finish for added elegance and sophistication for your surface mount
- Built with plastic product material to offer longevity and great resistance to damage and deterioration
- Glass Wall application/usage for better dependability with added efficiency
| Brand | |
|---|---|
| Brand | Crestron Electronics |
| Size / Dimensions | |
|---|---|
| Mount Profile | Flush |
| Form Factor | Surface Mountable |
| Appearance | |
|---|---|
| Finishing | Textured Black |
| General Features | |
|---|---|
| Manufacturer | Crestron Electronics, Inc |
