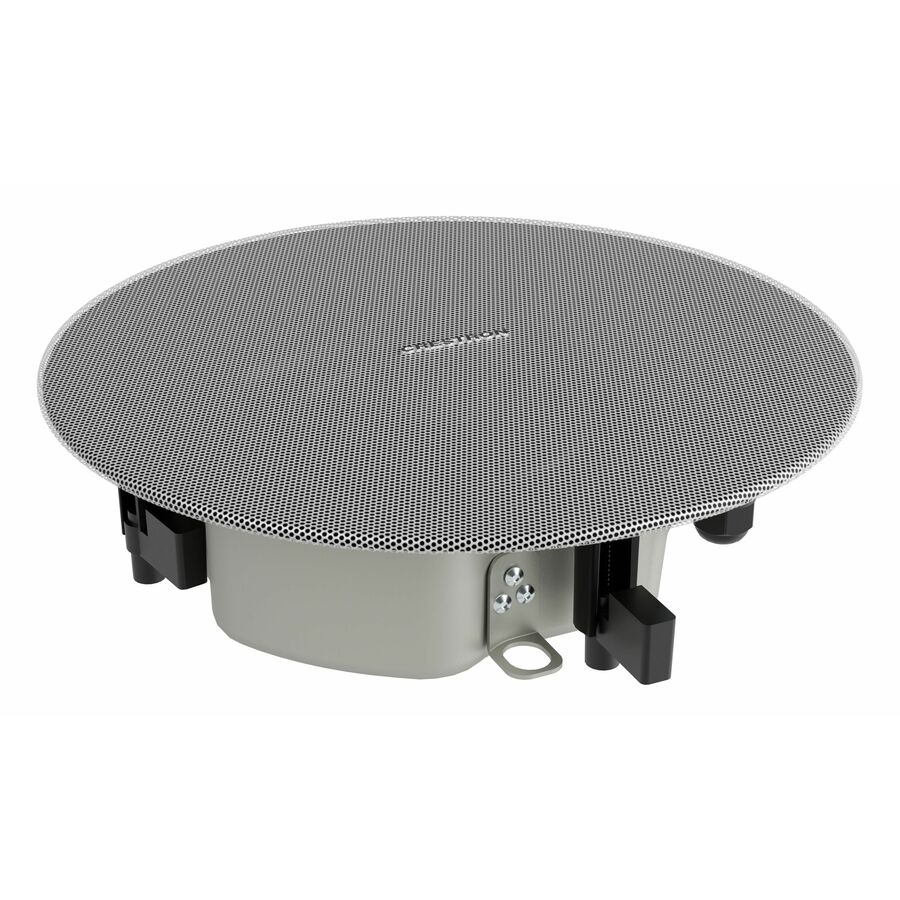

The SAROS IC6ULPT-W-T-EACH+ is a 2-way in-ceiling speaker featuring a 4 in. woofer and titanium 1 in. dome tweeter. Its low profile enclosure allows for installation in ceiling spaces as shallow as 2.4 in. (61 mm). A built-in 30 W multi-tap transformer allows for use with 70V and 100V distributed speaker systems. Power handling at 8 Ω is 35 W (program), with a frequency response from 120 Hz to 20 kHz (±3 dB).
The SAROS IC6ULPT-W-T-EACH+ is designed for quick and easy installation and years of reliable performance. Its zero-bezel frameless grille achieves an unobtrusive and contemporary appearance well-suited for use in restaurants, retail spaces, houses of worship, universities, and office buildings. Installing the grille requires no hardware or tools, utilizing powerful magnets to hold it in place. A safety tether is included to prevent the grille from falling from the ceiling.
Mounting the speaker is facilitated using swiveling mounting dogs integrated into the enclosure. The mounting dogs feature two positions to accommodate standard and thick surfaces up to 1 in. (25 mm). A tile bridge is included to provide proper support when installed in a typical drop-tile ceiling. The tile bridge is adjustable to enable off-center speaker positioning, and can be folded to fit through the speaker cutout. A rigging point is also provided on the speaker enclosure for securing to the building structure using an optional safety tether kit (SPKA-ST-15, sold separately).
An integral metal back can is employed to meet the requirements of UL® 2043 for installation in a plenum space. A short length of two wire speaker cable extends from the back can of the speaker for a connection back to an amplifier using wire nuts (not included). Setting the 70/100V transformer tap is performed via a screwdriver-adjustable control located on the front baffle, behind the grille. The speaker housing also meets IPX5 ratings for splash resistance.
SAROS IC6ULPT-W-T-EACH+ speaker grilles can be painted to blend with the ceiling surface. The speakers are priced individually, but must be ordered in pairs.
Key Features
- High-performance, ultra low profile 2-way in-ceiling speaker
- Requires only 2.4 in. mounting depth
- Built-in 30 W 70/100V multi-tap transformer
- IPX5 rated for splash resistance
- Zero-bezel frameless grille for a clean, contemporary appearance
- Two-step swiveling dog mounting system for quick and easy installation
- Includes tile bridge for installation in a drop-tile ceiling
- 35 W program power handling at 8 Ω
- Coverage up to 140° for music content or 150° for speech
- Paintable to blend with surroundings
- Crestron IC6ULPT-W-T-EACH+ - Productive speaker that simulates music like you have never experienced before
- 8 Ohm impedance extracts maximum power so that you get more from your speakers
- 2-way speakers produce utterly smooth and lucid sound
- Listen to deep lows and euphoric highs with a frequency range of sound from 100 Hz-20 kHz
- Handles up to 35 W RMS power
- Yes crossover supported to ensure that you always get the desired sound/audio output with reliable connectivity and convenience
- 4.02" woofer driver size allows better stereo imaging with maximum sound feasibility
- 0.98" tweeter driver size provides crispier, well-detailed sound with maximum productivity
- Delivers exceptional sound with 20 kHz maximum frequency response
- 85 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
| Brand | |
|---|---|
| Brand | Crestron Electronics |
| Networking & Connectivity | |
|---|---|
| Crossover Supported | Yes |
| Audio | |
|---|---|
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 100 Hz |
| Impedance | 8 Ohm |
| RMS Output Power | 35 W |
| Tweeter Driver Material | Titanium Dome |
| Woofer Driver Material | Polypropylene |
| Crossover Type | 2-way |
| Sensitivity | 85 dB |
| Tweeter Driver Size | 0.98" |
| Woofer Driver Size | 4.02" |
| Size / Dimensions | |
|---|---|
| Speaker Diameter | 10.63" |
| Form Factor | In-ceiling |
| General Features | |
|---|---|
| Durability | Splash Resistant |
| Manufacturer | Crestron Electronics, Inc |
| Compliance & Certification | |
|---|---|
| Ingress Protection (IP) Rating | IPX5 |
