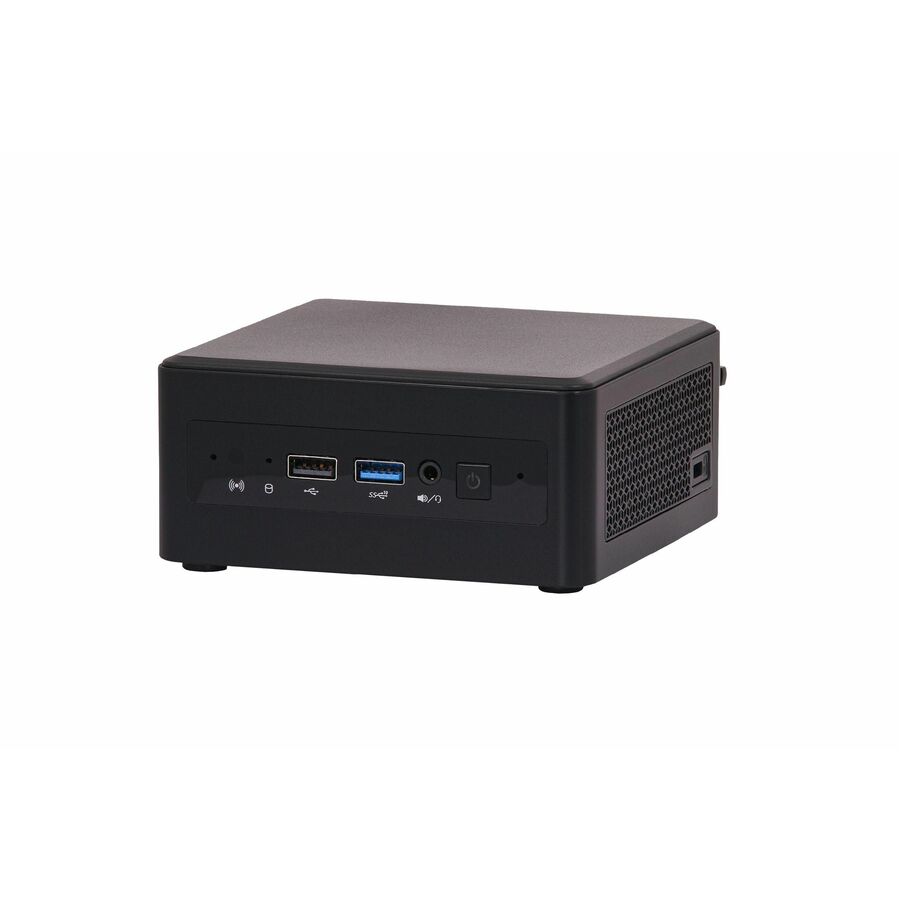

Simply NUC Business NUC - NUC13OXi7 / NUC13OXKi7 | Unmatched Performance for Modern Business
Onyx is the latest and greatest in ultra-small form factor compute power from Simply NUC, driving unmatched performance for modern business from the desk to the edge to the cloud and back. Powered by Intel's 13th Gen Raptor Lake 13700H processor and kept cool with Simply NUC's Dual Exhaust Cooling solution, Onyx has support for up to 64GB of DDR5-5200 memory, up to 16TB of storage, and off-the-charts benchmark results, delivering all the power, without the tower.
Onyx - Defined by You, Built for You
Onyx may be a Simply NUC product, but it was defined by our customers, and built to meet your needs, with key features like dual HDMI 2.1, dual USB 4.0 Type-C, and a 2.5Gb Ethernet port to name a few. The Onyx NUC gives you the ability to expand its feature set to match your specific usage needs, with a rear I/O expansion panel on the full height chassis and a replaceable lid, giving you a plethora of additional I/O options such as USB, HDMI, LAN, or serial ports. From office workstations, to on-prem heavy edge computing, to robotics and sophisticated IoT networks, Onyx i7 has the flexibility and performance options to perfectly serve your usage requirements.
Performance with Uncompromised Security and Reliability
Powered by Intel's 13th Gen Raptor Lake 13700H processor, featuring 14 cores and 20 threads, Onyx packs outsized performance into a small chassis. Raptor Lake processors feature Intel Thread Director, using machine learning to schedule tasks on the right core at the right time, preventing background tasks from slowing you down, and keeping the focus on the primary workload. Keep your fleet of 24x7 tested computers with Intel Boot Guard, keeping your system's pre-OS environment safe from viruses and malicious software attacks. Upgrade to Onyx i7 today, and enjoy uncompromised and highly reliable processing power.
- With 16 GB of memory, run multiple demanding apps at once without lag, ideal for multitasking, content creation, and virtualization
- 256 GB SSD enables quick resume from suspension and keeps active programs responsive with fast read and write speeds
- Desktop Computer offers easy internal access for hardware upgrades, allowing users to expand memory, storage, or graphics capabilities with minimal effort
- Intel Iris Xe Graphics shared graphic card handles HD video playback, photo editing, and complex office applications through adaptive memory usage and integrated graphics processing
- Lets you conveniently connect to the wireless LAN, supporting stable internet connectivity and efficient online operations
- Ultra Small form factor simplifies setup and daily interaction through a space-efficient layout
- Bluetooth enables wireless connectivity with support for device pairing, data transfer, and over-the-air firmware updates
- Lets you conveniently connect to the 2.5 gigabit ethernet for stable wired networking with consis
| Brand | |
|---|---|
| Brand | SimplyNUC |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Model | i7-13700H |
| Processor Generation | 13th Gen |
| Processor Threads | 20 |
| Processor Core | Tetradeca-core (14 Core) |
| Maximum Turbo Speed | 5 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 5200 MHz |
| Maximum Memory Supported | 64 GB |
| Storage | |
|---|---|
| Drive Type | SSD |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 120 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| LAN Model | i225-V |
| LAN Manufacturer | Intel |
| USB Ports | |
|---|---|
| Number of USB 2.0 Ports (Fron | 1 |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number of USB4 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI (Rear) | Yes |
| Ethernet Port | |
|---|---|
| Number Of Ethernet Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Ultra Small |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Manufacturer | SimplyNUC |
