The LinkIQ™ Cable+Wi-Fi+Network Tester is the solution to verify cable performance up to 10G and solve network connectivity problems. LinkIQ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T). LinkIQ also provides IPv4 and v6 ping; nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates); Ethernet Alliance-certified Power over Ethernet testing (hardware/software negotiation and loaded voltage and power tests). Wi-Fi analysis to Wi-Fi 6E, including networks, channels, and access points. Additional features include cable toning, port blink, optional remote office locators, and the ability to manage results via LinkWare™ PC.
- Cable performance testing up to 10GBASE-T plus troubleshooting (distance to fault, wire map, toning)
- Network features include IPv4 and v6 ping, nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates).
- Ethernet Alliance-certified PoE Verification detects the PoE class (1-8) and power, and performs a load test of available PoE from the connected switch
- Wi-Fi analysis to Wi-Fi 6E, including networks, channels, and access points
| Brand | |
|---|---|
| Brand | Fluke Networks |
| Power & Battery | |
|---|---|
| Battery Rechargeable | Yes |
| Battery Built-in | No |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size Supported | AA |
| Number of Batteries Supported | 1 |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Battery Weight | 3.53 oz |
| General Features | |
|---|---|
| Device Function | Connectivity Testing |
| Manufacturer | Fluke Networks |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Packaging & Origin | |
|---|---|
| Battery Included | Yes |

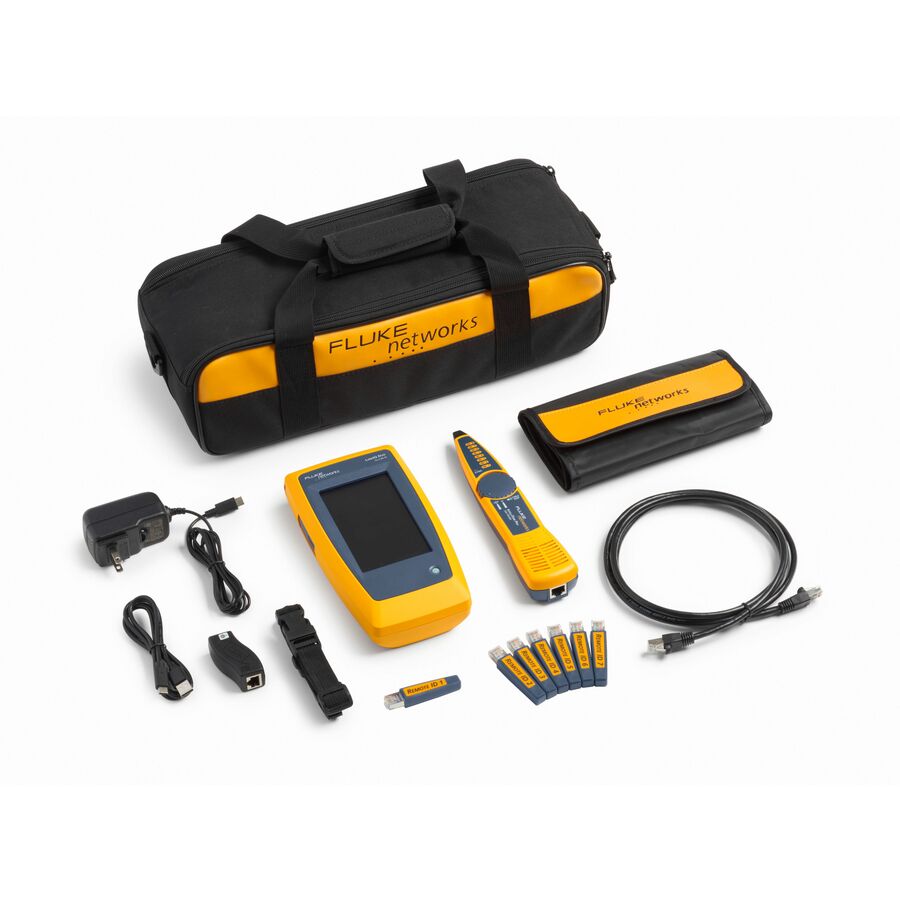

Fluke LinkIQ LIQ-DUO-KIT Testing Device - Cable Testing, Wireless Connectivity Testing, Network Testing, Network Troubleshoot, PoE Testing, Wiremap, Cable Fault Testing, Connectivity Testing - USB - Network (RJ-45) - Twisted Pair - 10 Gigabit Ethernet - 10Base-T, 10GBase-T - 1Number of Batteries Supported - AA - Battery Included - Battery Rechargeable - Lithium Ion (Li-Ion)
