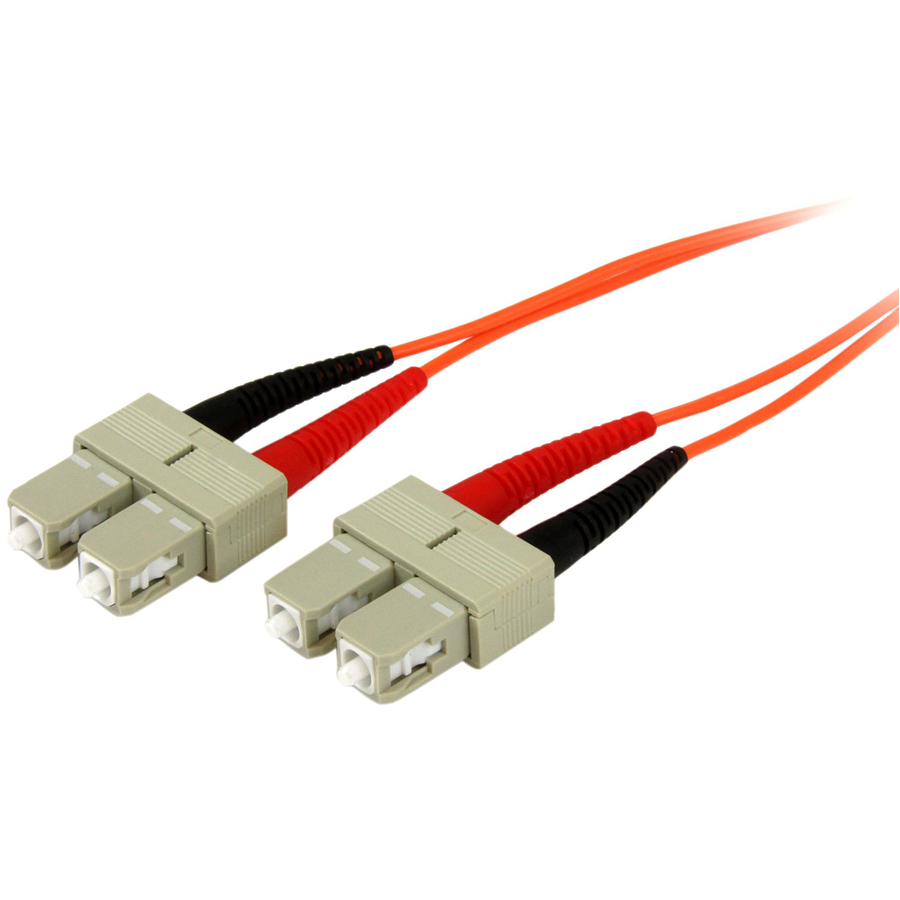

Plenum Multimode 50/125 Duplex Fiber Patch Cable provides a high-performance link between fiber network devices for applications requiring plenum-rated cables. It features 50/125 micron fiber for high-speed, high-bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks with support for duplex multimode applications. The OFNP Plenum rating is ideal for installation in air plenums, ducts, walls, conduit and ceilings where CMP fire rating is required. Cable with SC connectors is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability. Maximum data-transfer rate is 10Gbps.
More from the Manufacturer
- 2x SC MM male connectors
- Provides high-speed, high-bandwidth data transmissions
- OFNP Plenum Fire Rating
- OFPN Plenum-rated to install in ducts, air plenums, walls, conduits, ceilings and more where CMP fire rating is required
- OM2 (50/125) 500MHz multimode fiber
- Tested and certified to be within acceptable, optical insertion loss limits for guaranteed compatibility and reliability
- Attenuation loss meets or exceeds industry standards
- Use in Gigabit Ethernet and Fiber Channel applications
- Molded connectors
| Brand | |
|---|---|
| Brand | StarTech.com |
| Size / Dimensions | |
|---|---|
| Shipping Height | 0.98" |
| Shipping Width | 7.87" |
| Shipping Weight (Approximate) | 1.92 oz |
| General Features | |
|---|---|
| Data Transfer Rate | 10 Gbit/s |
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 50/125 µm |
| Cable Length | 6.60 ft |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Connector Type on First End | SC Network - Male |
| Connector on First End Details | 2 x SC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Jacket Type | OFNP |
StarTech.com 2m Fiber Optic Cable - Multimode Duplex 50/125 - OFNP Plenum - SC/SC - OM2 - SC to SC Fiber Patch Cable - Provide a high-performance link between fiber network devices, for applications requiring plenum rated cables - Duplex Fiber Cable - SC to SC Fiber Patch Cable - Multimode Fiber Patch Cord - 2m 50 Micron Multimode Plenum OFNP Fiber Optic Cable - OM2
