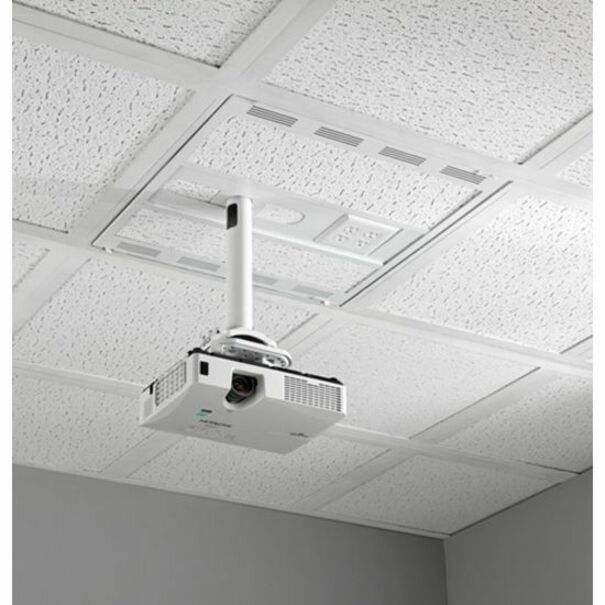

The Chief suspended ceiling storage box conceals AV equipment above a 2' x 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.
- TAA Compliant
- UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- 25 lbs (11 kg) per shelf location
- 50 lbs (22 kg) for projector ceiling plate
- Overall weight capacity 100 lbs (45 kg)
- 1 RU rack rail brackets sold separately, see CMS1RU
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
- Built in ventilation
- AV tray supports a variety of AV components
- 4 nested knockouts for 1-1/4", 1", & �" diameter conduit
- Up to 2 single gang or 1 dual gang outlet
- Inside the box or facing the room
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
- Drop carriage door improves accessibility and serviceability providing full access to equipment
- Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 100 lb |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
