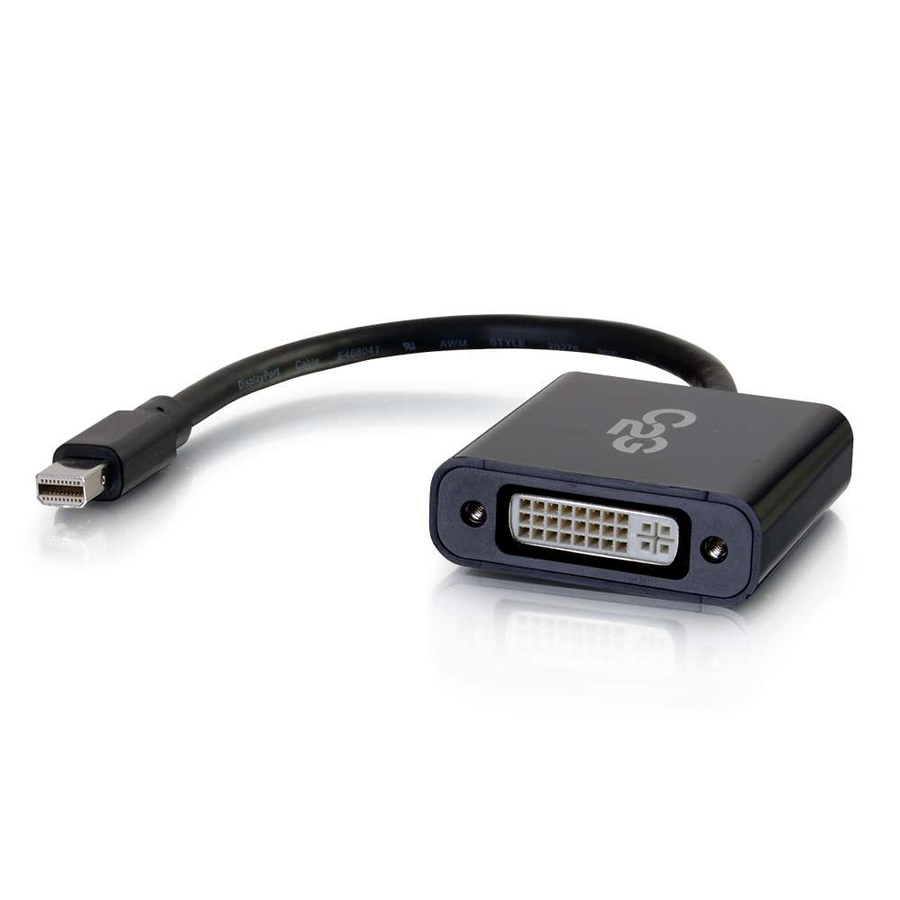

This adapter allows the Mini DisplayPort video output of a laptop to connect to the DVI-D input of a display and is perfect for applications including displaying video on an HDTV, projector, or monitor in a classroom, on a desktop, or in a meeting room. This Mini DisplayPort to DVI-D active adapter can be used in either DisplayPort single-mode or dual-mode outputs , providing the conversion for a Mini DisplayPort source even when that source does not support DP++. Active Mini DisplayPort conversion is excellent for applications where multiple Mini DisplayPort adapters are required to connect to a single graphics card. This allows every active adapter to interface with a corresponding display.
Note: When this device is connected to a Mini DisplayPort source device that supports audio and an DVI-D to HDMI Cable with the HDMI connector plugged into a HDMI display device that supports audio both audio and video signal will be transmitted from the source device to the display device. However connecting to a DVI-D display will not allow audio to pass to the display.
Note: When this device is connected to a Mini DisplayPort source device that supports 4K signal and an DVI-D to HDMI Cable that supports 4K with the HDMI connector plugged into a HDMI display device that supports 4K video signal full 4K video signal will be transmitted from the source device to the display device. However connecting to a DVI-D display will not allow 4K resolution to pass to the display.
- Dongle style adapter reduces strain on ports
- Support resolutions up to: 4096x2160 at 24Hz or 3840x2160 at 30Hz
- Active Conversion of Mini DisplayPort to DVI-D
| Brand | |
|---|---|
| Brand | Legrand Group |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Cable Length | 8" |
| Cable Type | DVI/Mini DisplayPort |
| Connector Type on First End | DVI Digital Video - Male |
| Connector on First End Details | DVI Digital Video - Male |
| Connector Type on Second End | Mini DisplayPort Digital Audio/Video - Female |
| Connector on Second End Details | Mini DisplayPort Digital Audio/Video - Female |
