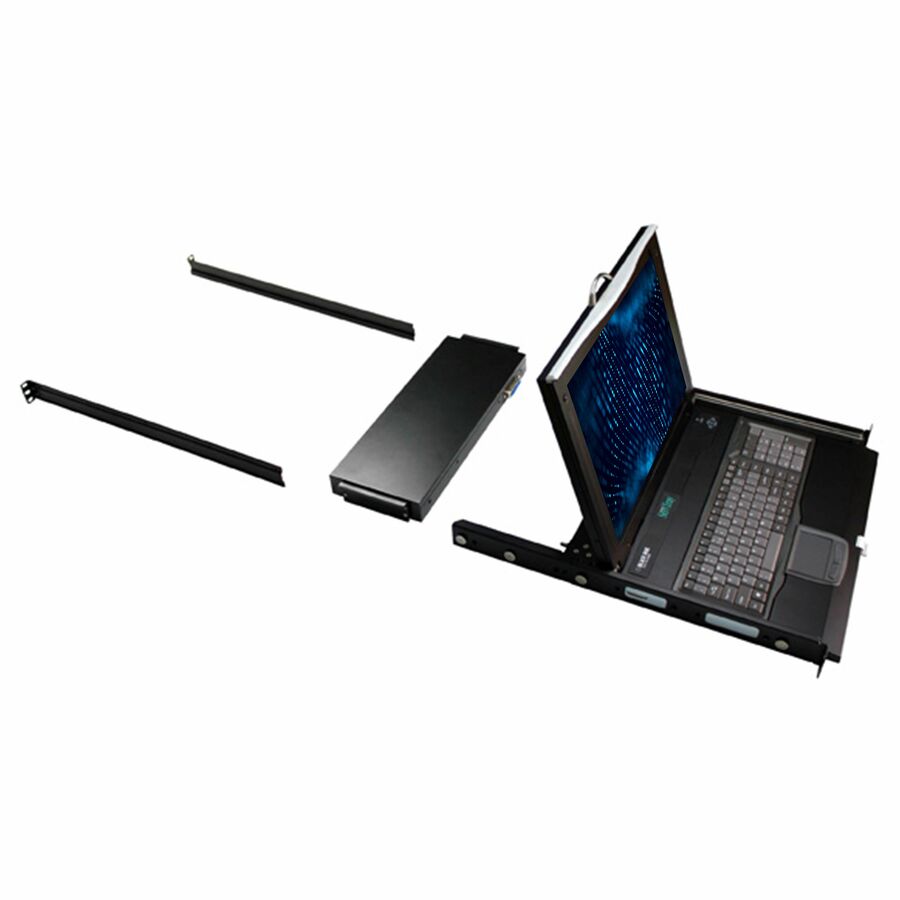

Black Box KVM Tray With Keyboard, Touchpad, And LCD Monitor

4,404.99 4,404.99
4,404.99

4,404.99 / Units
  • Brand
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Screen Size
  • Platform Supported
  • Keyboard
  • Pointing Device Type
  • KVM Switch
  • USB
  • VGA
  • Number of VGA Ports
  • PS/2 Port
  • Rack Height
  • Screen Resolution
  • Display Screen Type
  • TAA Compliant
  • Environmentally Friendly
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Product Model
  • Device Type
  • Manufacturer Website Address
  • Number of Computers Supported
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
  • Management software included.
  • This IP-enabled module provides access for up to four KVMoIP users simultaneously to different computers.
  • Control via on-screen display (OSD) menu, hotkeys, or mouse.
  • Expand the system by using the ServSwitch CX Uno (KV0161A, KV0081A).
  • Users can enable password security access with user profiles, respond to RS232 switching commands, and much more.
  • It comes with free WIZARD.NET management software, simplifying the access, security, and management systems with larger numbers of computers or users.
  • Also available in a single-user version.

Control up to 16 multiplatform computers from your KVM tray console, with expansion options to increase the number of servers available. Use convenient network-style CATx patch cables - thin flexible cables that are popular in racked applications, such as our Gigabase® CAT5e cables (EVNSL81). Add USB, PS/2, and Sun style server access modules (SAMs) for each server connection.

The switching module offers various port configurations and remote access options. This KVM module enables network users to control the switching module from a computer on the LAN or WAN using a VNC viewer or Web browser.

  • Support for VGA and DisplayPort Video, with either USB or PS/2 Keyboard and Mouse
  • Built-in 16-Port CATx KVM Switch with support for (1) KVM Tray user + (4) Remote IP Users using VNC (Server Access Modules not included in kit)
  • 1RU Design with 17" Display that can support resolutions up to 1280x1024
Brand
Brand Black Box Corporation
Screen / Display
Screen Size 17"
Screen Resolution 1280 x 1024
Display Screen Type LCD
USB Ports
USB Yes
Input Devices
Keyboard Yes
Pointing Device Type TouchPad
Size / Dimensions
Rack Height 1U
General Features
KVM Switch Yes
Manufacturer Black Box Corporation
Device Type LCD Rack Console
Number of Computers Supported 16
Video Ports
VGA Yes
Number of VGA Ports 1
Misc Ports
PS/2 Port Yes
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
