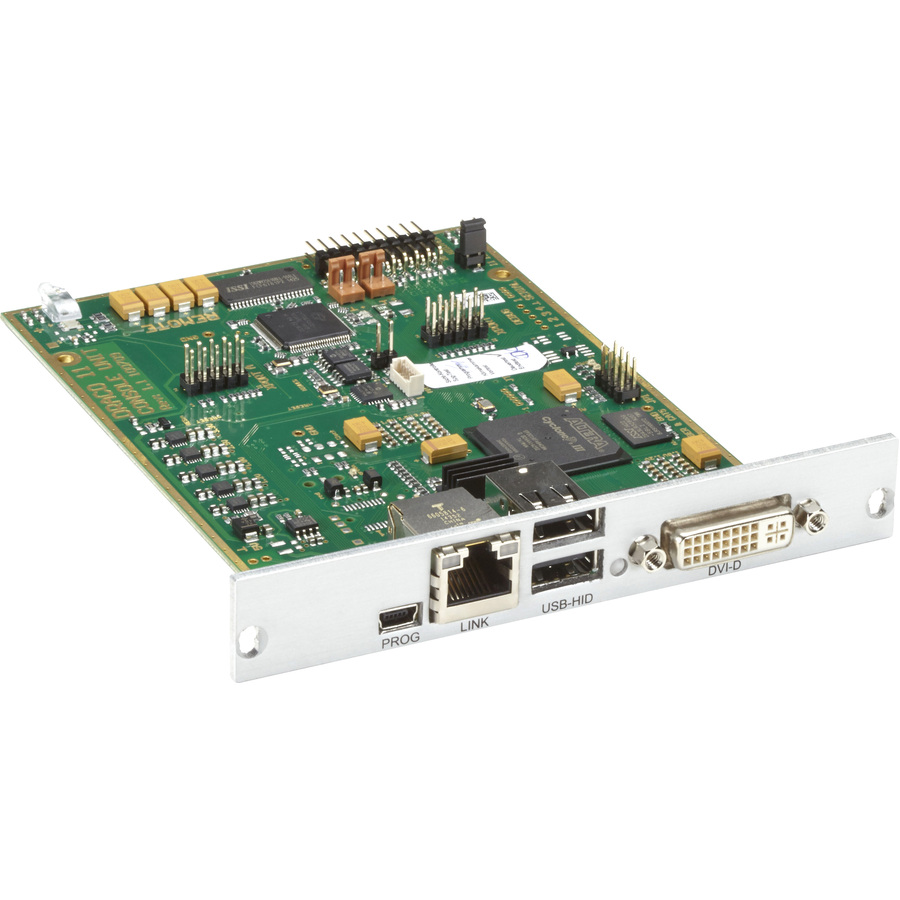

The maritime-certified DKM HD Video and Peripheral Matrix Switch System is comprised of modular housing chassis with two or six slots and maritime-certified transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize. You will need to contact Black Box to have your system assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix Switch setup,
- Supports DVI-D video signals with USB HID devices.
- Works over CAT5e or CAT6 cabling.
- Part of the DKM HD Video and Peripheral Matrix Switch System of transmitter and receiver interface cards and housings.
- Applications range from maritime control rooms to accessing radar and GPS systems on multiple bridge control stations.
- Use with 6-slot DKM Modular KVM Extender Housing that's approved for maritime use.
- Designed for use in a "Protected" area such as the Bridge.
- Housing passed rigorous tests on security and environmental (vibration, humidity and environment extremes).
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Receiver Weight (Approximate) | 10.58 oz |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Device Type | KVM Extender |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 1 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
