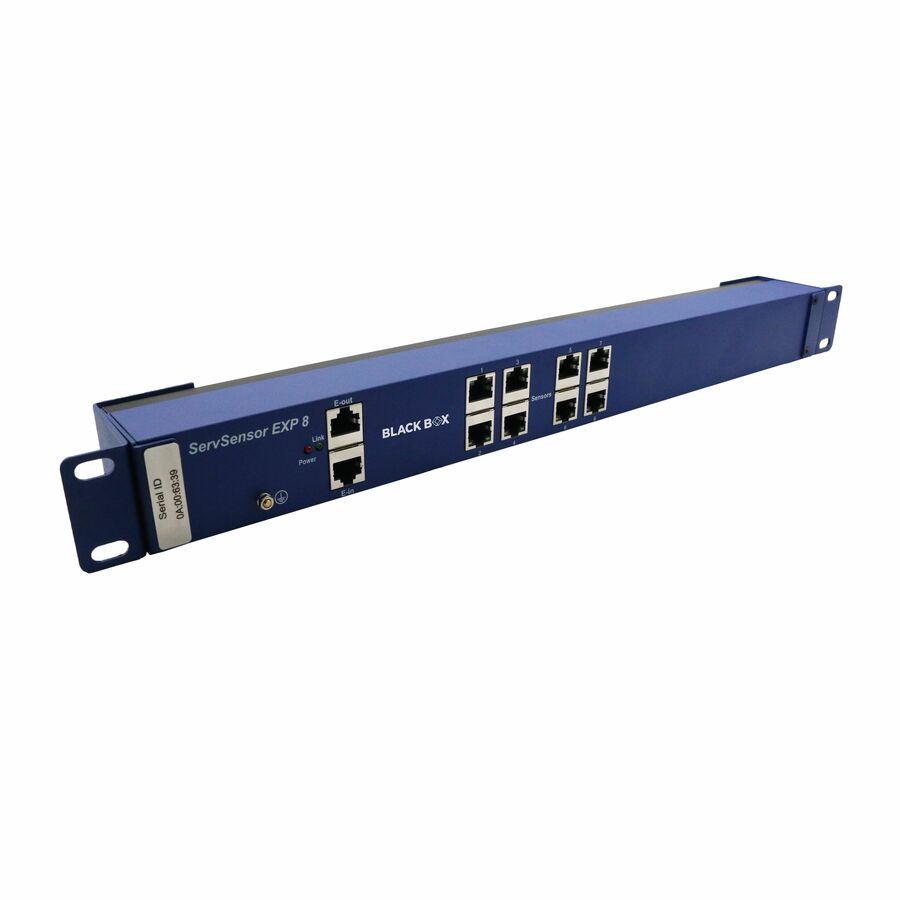

The Sensor Expansion Hub is an expansion module that provides an additional (8) RJ-45 intelligent sensor ports and connects to the RJ-45 expansion port located on the front panel of the AlertWerks wired gateway. The expansion hub connects to the gateway using a standard CAT5e cable.
Expansion Hubs can be daisy chained using the E-Out/E-In ports found on the front panel of the expansion hub. Extend the expansion boards from the AlertWerks base unit or from each other up to 1000 feet (300 meters).
- Provides an additional 8 sensor ports
- Connects to AlertWerks Wired Gateways
- Expansion hubs can be daisy-chained
- Extend the expansion hub from the AlertWerks Gateway or from each other up to 1000 feet (300 meters)
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100 V - 240 V |
| Input Voltage | 230 V AC |
| Input Current | 1 A |
| Power Source | AC/DC |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Cables | |
|---|---|
| Connector Type | RJ-45 |
| Compliance & Certification | |
|---|---|
| Humidity (Non-condensing) | 20% to 80% |
| TAA Compliant | Yes |
