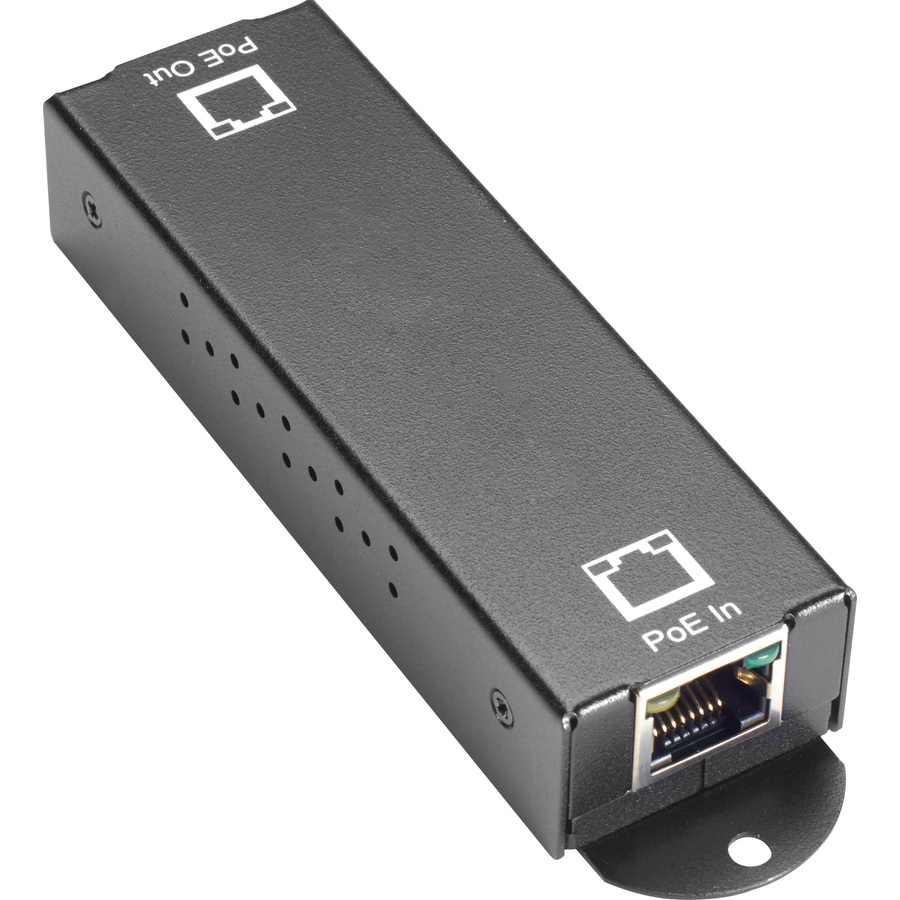

This PoE Repeater acts as a PoE extender, enabling you to extend PoE connections beyond the 100-meter Ethernet CATx limit to access faraway PoE devices such as Wifi access points and IP cameras.
The repeater passes along both data and power, so it needs no separate power supply; use one repeater for an additional 100 meters (328 ft.) reach or daisy-chain several repeaters for further reach. Up to 5 repeaters can be used in a link for ranges up to 600 meters.
Each PoE extender provides one (1) 10-/100-/1000-Mbps PD input port, and one (1) 10-/100-/1000-Mbps PSE output port.
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,155,012; 8,902,760; 8,942,107; 9,019,838 and/or 9,049,019.
PoE Power Available with Multiple LPR1111's PoE Source
- Works with 802.3af POE or 802.3at POE+
- Auto MDI/MDI-X means no need for a crossover cable
- Delivers IEEE 802.3af standard power, excellent for VoIP phone systems, remote access points, and IP cameras
- Plug-and-play capability, with autosensing and auto-negotiating 10-/100-/1000-Mbps Ethernet ports
- Extends both Gigabit Ethernet and PoE up to 600 meters, which is far beyond the typical 100-meter limit
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Input Voltage | 56 V DC |
| Power Consumption | 2 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 2 |
| PoE (RJ-45) Port | Yes |
| Number of PoE (RJ-45) Ports | 2 |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Product Condition | New |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
