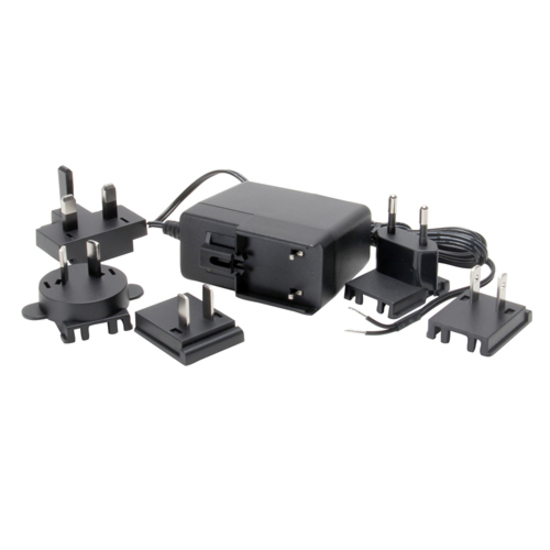

The BB-SMi18-x series is an 18 W wall plug-in AC-DC power supply with interchangeable AC blades. The series is designed to meet the latest US DoE Level VI efficiency standards in addition to the proposed and more stringent EU CoC Tier 2 requirements. Designed for global use, BB-SMi18-x adapters include plug options for North America, Europe, United Kingdom, Australia and China. This high efficiency power supply utilizes the latest in green power technology.
- Over-voltage, Over-current, Short Circuit Protections
- No Load Power Consumption, < 0.1W
- Interchangeable, Int'l AC Input Blades (included) (NAM, EU, UK, Australia, China)
- 12V DC, Up to 18 Watt Continuous Output Power
- Universal Input Voltage Range - 90 to 264 VAC
- DOE Level VI, CEC, ErP Stage 2 Energy Efficiency
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Output Voltage | 12 V DC |
| Maximum Output Current | 1.60 A |
| Maximum Output Power | 19.20 W |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
