Axiom offers a full line of efficient & cost effective cabling solutions for your networking project. We use only the finest components and the latest construction technologies to optimize cable performance and ensure compliance to industry specifications for each cable and its designated application. We offer a variety of solutions including fiber, infiniband, antenna & stacking cables. Whether you're upgrading components or installing a brand new network, you'll receive the highest quality connectivity products, a Lifetime Warranty and free technical support.

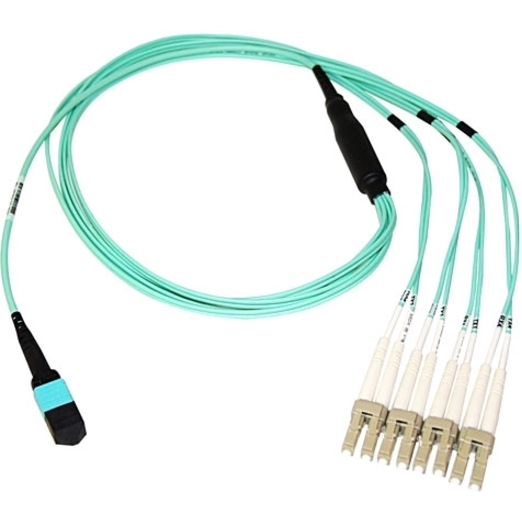

- 8 fiber - to 4 LC Duplex Fiber Optic Cable 50/125, OM4, Aqua
- 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side
- All Connectors Have Ceramic Ferrules
- Duplex Clips On LC Side
- Plenum (OFNP) Rated Aqua Jacket With Corning Glass
- Jacket OD: 3.0mm (MPO) 2.0mm (LC)
- Typical Return Loss,min.: MTP=20dB, LC=30dB
- Typical Insertion Loss (MPO): 0.16dB
- Typical Insertion Loss (LC): 0.35dB
- Long Term Tensile Strength: 150n
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| General Features | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 50/125 µm |
| Cable Length | 131.23 ft |
| Cable Type | Fiber Optic |
| Fiber Optic Mode | Multi-mode |
| Connector Type on First End | MPO Network - Female |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Jacket Type | OFNP |
