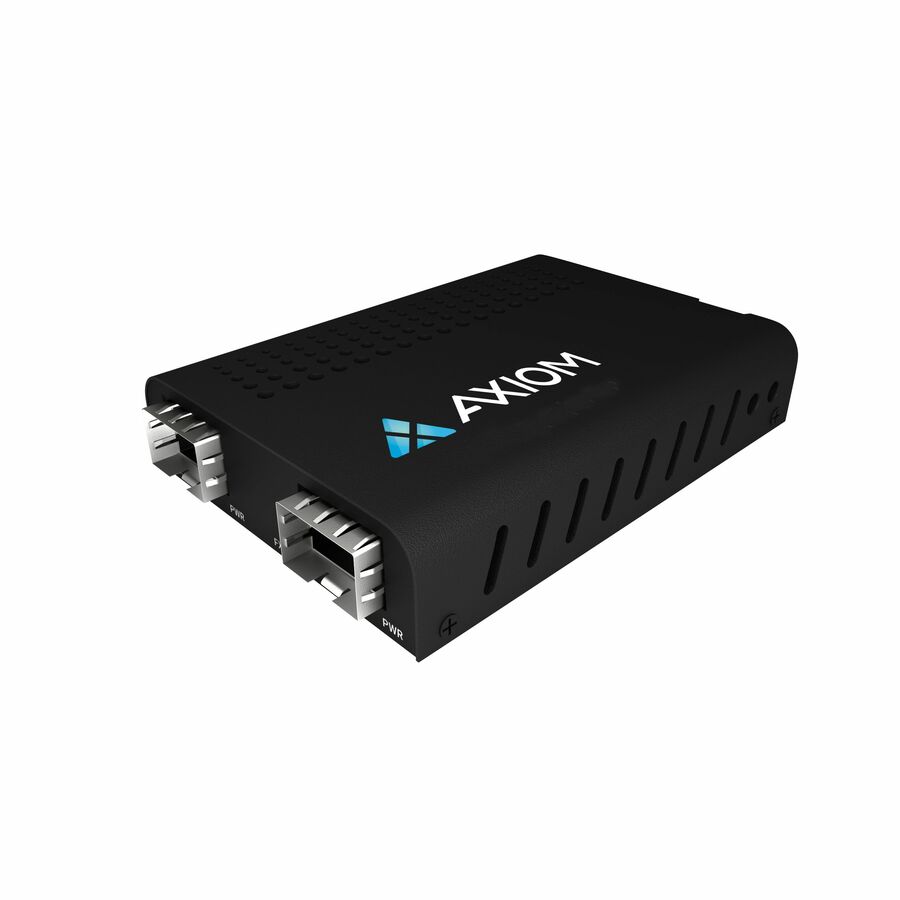

The Axiom Mini SFP to SFP Optical Mode Converter is a high-performance 125M~1.25G optical signal repeater Using Optical - Electrical - Optical (OEO) wavelength conversion and offers protocol transparent connectivity between different wavelengths or fiber modes for speed from 100Mbps to 1250Mbps. Protocol independence allows for use in broad range of applications including Fast Ethernet, Gigabit Ethernet, OC-12 and Fiber Channel.
- SFP to SFP optical mode converter
- Supports rate from 100Mbps to 1.25Gbps
- Supports multimode and single-mode
- Jumbo frame Support
- Compact package size
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- With 1000Base-SX technology get up to 1000Mbps data transfer rate over optical fiber cable
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Power Consumption | 3 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-LX |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1.25 Gbit/s |
| Maximum Distance Supported | 0.55 km |
| Manufacturer | Axiom Memory Solutions |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
