Attain optimal performance with Axiom OM4 laser-optimized multimode fiber patch cables. Axiom OM4 Fiber Optic Cables answer the call for increased bandwidth requirements used in cost-effective multi-mode systems. OM4 Cable provides an opportunity to future-proof cabling and networking infrastructure delivering increased bandwidth for next-generation 40 and 100Gb/s applications.
Axiom OM4 is completely backward compatible with existing OM3 applications. OM4 Cable is laser-optimized high bandwidth 50um multimode fiber, has a more stringent test specification, and provides an additional layer of performance that supports 10Gb, 40Gb, and 100Gb applications at longer distances.
Product Features:
- Fully compatible with 50um multimode fiber applications
- Multimode fiber construction - 50/125 diameter core and cladding
- Meets minimum reach distances standards for 10Gb, 40Gb, and 100Gb Ethernet distance performance requirements
- Designed for use in multi-mode, next-generation high bandwidth applications
- Factory terminated for superior performance
- Meets and exceeds industry standards for insertion loss
- 100% optically tested
- Limited lifetime warranty
- Multimode Duplex Fiber Optic Cable 50/125, Om4, Aqua
- OM4 Compliance: Effective Modal Bandwidth >= 4700 MHz-Km
- Enabling 40/100 Gb/S Parallel Transmission Concepts

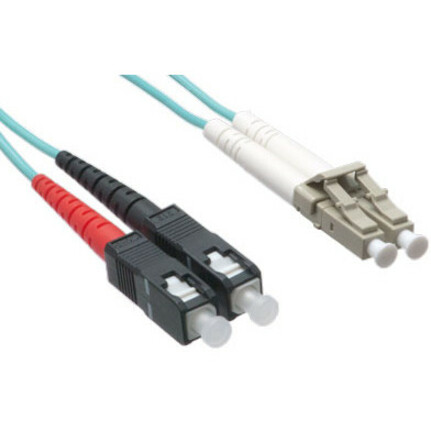

- (2) LC/UPC Connectors On One Side, (2) SC/UPC Connectors On Other
- All Connectors Have Ceramic Ferrules
- Duplex Clips Both Sides
- Bend Insensitive
- Bending radius 10mm
- PVC (OFNR) Rated Aqua Jacket With Corning Glass
- Maximum Attenuation - (dB/Km) 3.0/1.0
- Wavelength (nm) 850/1300
- Jacket OD: 1.8mm
- Long Term Tensile Strength: 150n
- Long Term Crush Resistance: 200n/100mm
- Operating Temperature: -40° C To +70° C
- Color: Aqua
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| General Features | |
|---|---|
| Data Transfer Rate | 100 Gbit/s |
| Manufacturer | Axiom Memory Solutions |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 50/125 µm |
| Cable Length | 1.64 ft |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Connector Type on First End | LC Network - Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Jacket Type | OFNR |
| Jacket Color | Aqua |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
