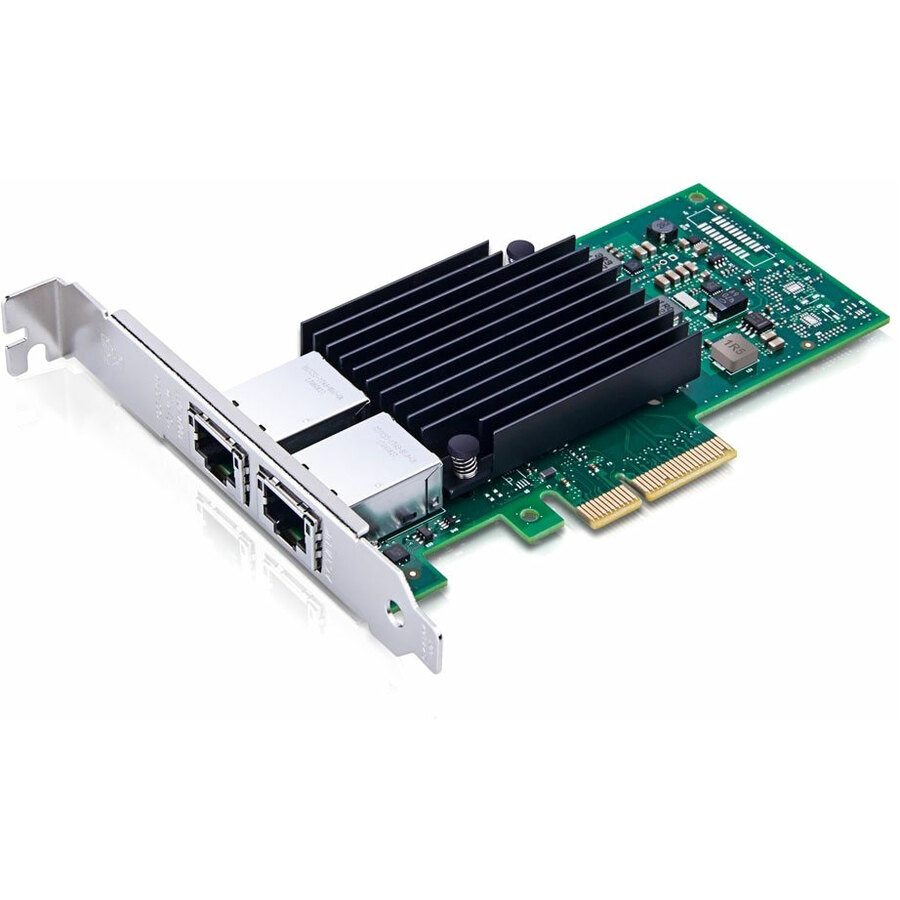

Axiom's 10GbE Copper Network Adapters are the latest generation of high-performance PCIe 3.0 x4 Lane 10 Gigabit NIC Cards, based on the Intel X550AT controller. The server adapter simplifies migration to 10 Gigabit Ethernet (GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).
Key Features:
- Low cost, low power, 10GbE performance for the entire datacenter
- New generation single- and dual-port 1OGBASE-T controller with integrated MAC and PHY
- Standard CAT6a cabling with RJ45 connectors
- Supports NBASE-T technology (2.5 and 5.0 GbE over CAT 5e)
- Backward compatibility with existing 1000BASE-T networks simplifies the transition to 10GbE
- PCI Express - (PCIe) v3.0 with up to 8.0 GT/s
- Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA
- Flexible 1/0 virtualization for port partitioning and Quality of Service (QoS) of up to 64 virtual ports
- Reliable, proven 10GbE technology from Intel Corporation
- Includes Full Height and Half Height Mounting Brackets
- 10Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- This 8000 MB/s bandwidth PCI Express 3.0 x8 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- With quad ports on a single card, save valuable expansion slots on your system for other purposes
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Misc Ports | |
|---|---|
| Total Number of Ports | 4 |
| Host Interface | PCI Express 3.0 x8 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
