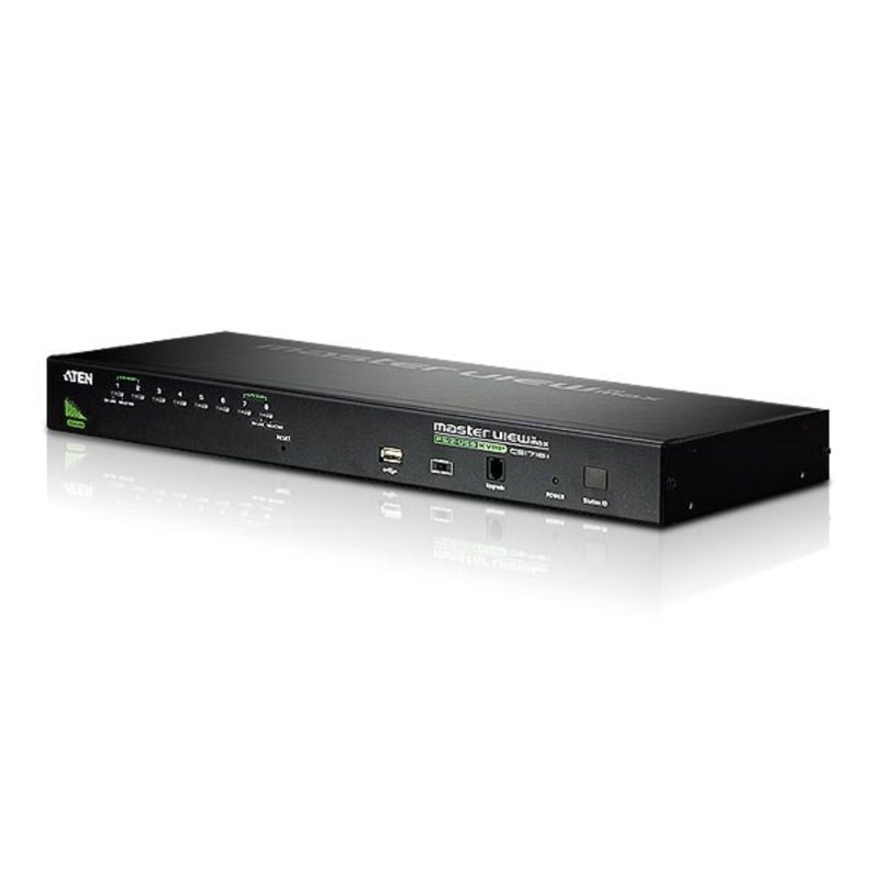

The CS1708A KVM multi-platform switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1708A can control up to 8 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 256 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
- Superior video quality - up to 2048 x 1536; DDC2B
- Auto PS/2 and USB interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Supports USB keyboards for PC, Mac and Sun
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows, Linux, Mac and Sun
- Front accessible USB port allows each computer to access USB peripherals *
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console
- One USB-PS/2 console controls up to 8 computers
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | SVGA |
| Networking & Connectivity | |
|---|---|
| Daisy Chain Supported | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 2048 x 1536 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 8 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
Aten CS1708A 8-Port PS/2 USB KVM Switch-TAA Compliant - 8 x 1 - 8 x SPHD-15 Keyboard/Mouse/Video - 1U - Rack-mountable
