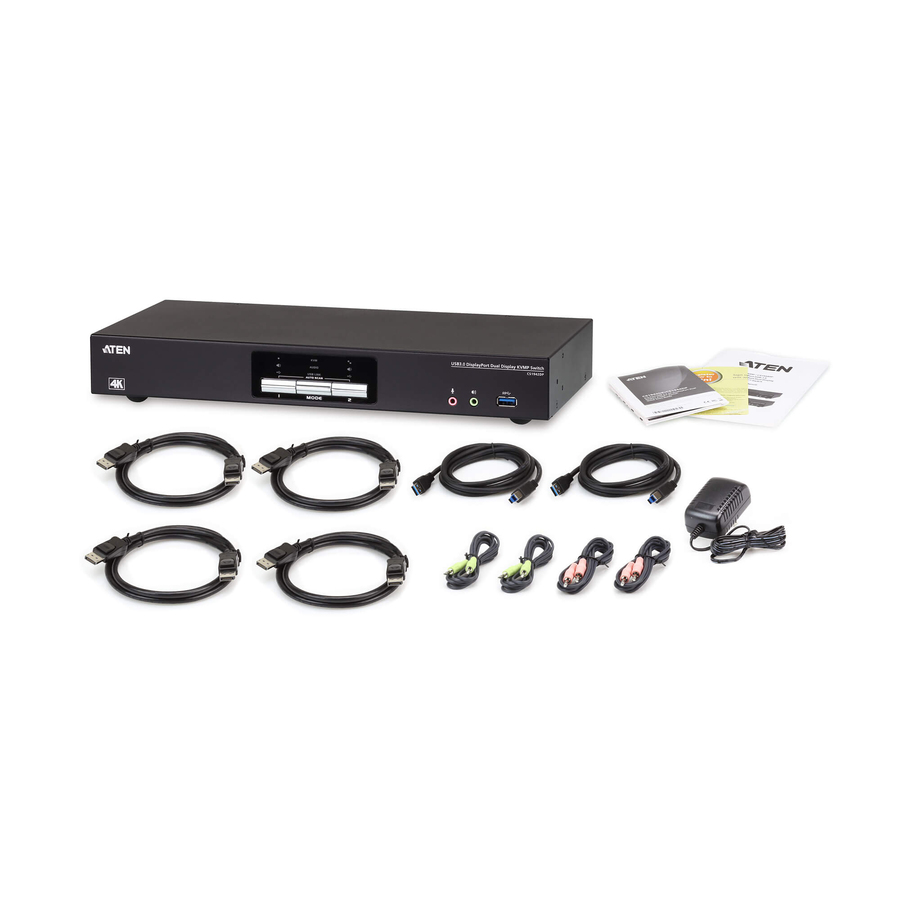

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
- Supports Console mouse emulation / bypass feature
- Independent switching of KVM, USB, and Audio
- Supports Console keyboard emulation / bypass feature
- Supports MST (Multi-Stream Transport)
- Supports DisplayPort Dual-Mode technology (DP++)*
- 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports superior video quality - Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
- Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
- Supports Quad Display by connecting two Dual Display KVM switches
- One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Power & Battery | |
|---|---|
| Input Voltage Range | 12V DC |
| Input Voltage | 12 V DC |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 6 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 6 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Local Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 2 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
