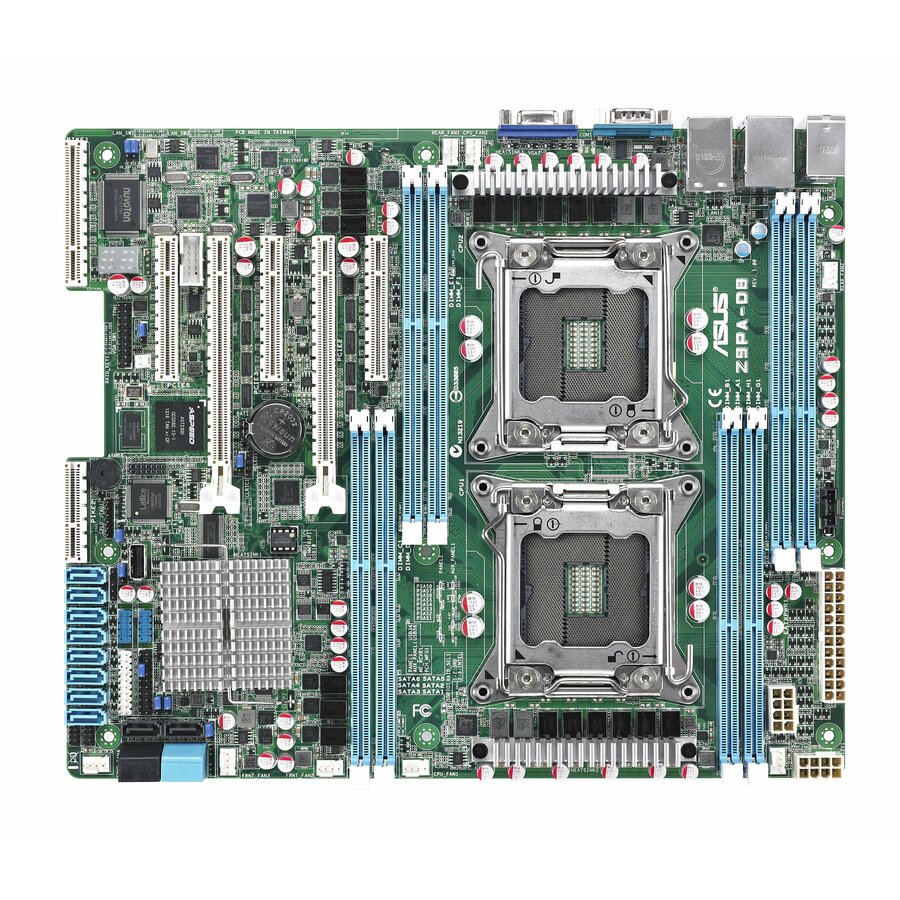

Most Powerful Dual LGA2011 Serverboard in 12"x10" Compact Size
ASUS proudly to announce new server board Z9PA-D8 based on Intel® E5-2600 + C602 PCH platform. The board integrates versatile features into a compact 12"x10" size which allows this board to fit into ATX chassis. Through innovative and top-notch engineering design, this board is able to support dual Intel® Xeon® E5-2600 processors up to 135W CPU. With adequately developed thermal solution in 1U rack mount, the system may support up to 115W CPU.
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR3 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- RAID supported levels provide data reliability and fault tolerance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 2 USB 2.0 ports, connect devices for a quick data movement
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon |
| Total Processor Supported | 2 |
| 64-bit Processing | Yes |
| Processor Socket | Socket R LGA-2011 |
| QuickPath Interconnect | 8 GT/s |
| GPU / Graphics | |
|---|---|
| Graphics Controller Memory | 16 MB |
| Graphics Controller Model | AST2300 |
| Onboard Video | On-board Video Chipset |
| Graphics Memory Technology | VRAM |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR3 SDRAM |
| Memory Speed Supported | 1066 MHz |
| Memory Form Factor | LRDIMM |
| Memory Standard | DDR3-1066/PC3-8500 |
| Number of Memory Slots | 8 |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 1+0 |
| Power & Battery | |
|---|---|
| Power Supply Supported | ATX12V |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 5 |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| Network (RJ-45) | Yes |
| Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| Microphone Port | No |
| Audio Line Out | No |
| Audio Line In | No |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Onboard LEDs Header | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C602-A |
| Controller Type | Serial ATA/300 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 2 |
| Total Number of PCI Express S | 6 |
| Number of PCI Express x8 Slots | 3 |
| Total Number of Expansion Slots | 6 |
| PCI Express Standard | PCI Express 3.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Onboard Serial Header | Yes |
| Number of SATA Interfaces | 6 |
| Serial Port | Yes |
| Number of PS/2 Ports | 1 |
| PS/2 Port | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Packaging & Origin | |
|---|---|
| Package Type | Retail |
