High Density and Best Streamlined Airflow with Optimized Efficiency

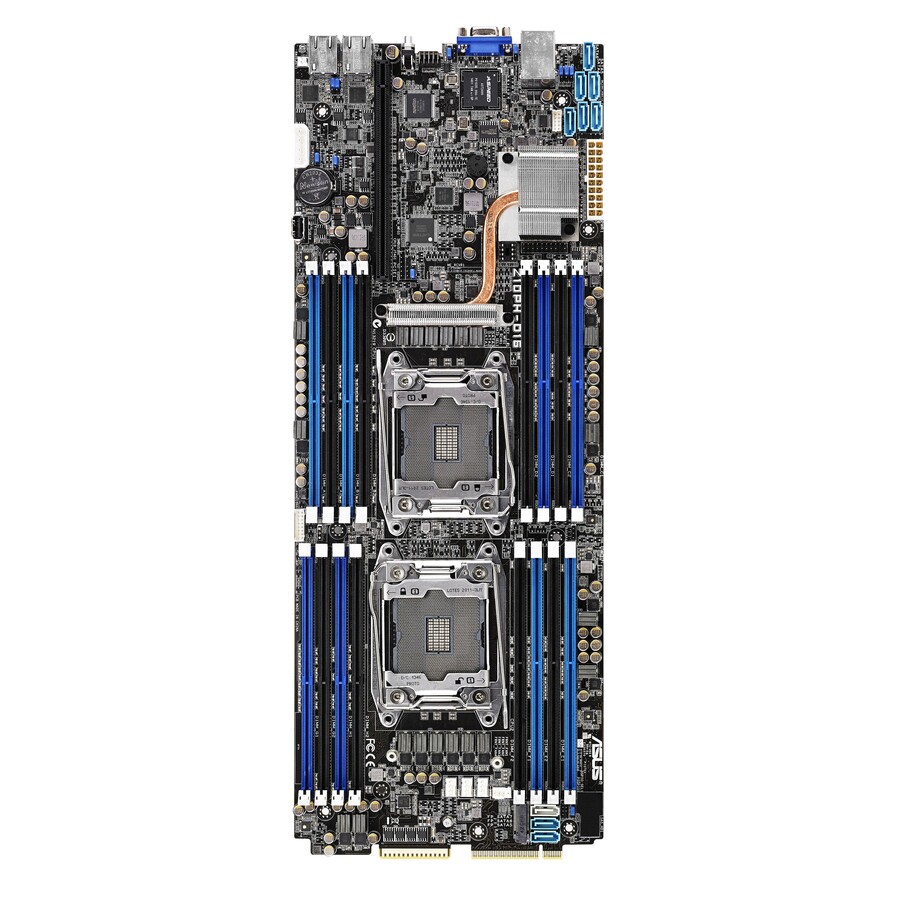

The ASUS Z10PH-D16 is a server board designed to provide high-density computing power, with efficiency and best streamlined airflow. Z10PH-D16 supports the latest CPU technology to maximize processing performance, along with premium components for premium efficiency and flexible expansion - so it is ideal as a computing node in HPC and IPDC markets, or in any applications that require true high density.
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Assure a solid foundation for PC components and magnify the performance with the support of multiple processors on Half SSI server motherboard
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon |
| Total Processor Supported | 2 |
| 64-bit Processing | Yes |
| Processor Socket | Socket LGA 2011-v3 |
| QuickPath Interconnect | 9.60 GT/s |
| GPU / Graphics | |
|---|---|
| Graphics Controller Memory | 32 MB |
| Graphics Controller Model | AST2400 |
| Onboard Video | On-board Video Chipset |
| Graphics Memory Technology | VRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 1600 MHz |
| Memory Form Factor | LRDIMM |
| Memory Standard | DDR4-1600/PC4-12800 |
| Number of Memory Slots | 16 |
| Maximum Memory Supported | 1 TB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 2 |
| Number of Onboard USB 2.0 Por | 2 |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| Network (RJ-45) | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Sound Controller Model | No |
| Sound Controller Manufacturer | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Half SSI |
| General Features | |
|---|---|
| Onboard LEDs Header | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Total Number of PCI Express S | 1 |
| Total Number of Expansion Slots | 1 |
| PCI Express Standard | PCI Express 3.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Onboard Serial Header | Yes |
| Number of M.2 Interfaces | 1 |
| Number of SATA Interfaces | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
