High Density Computing for HPC Applications

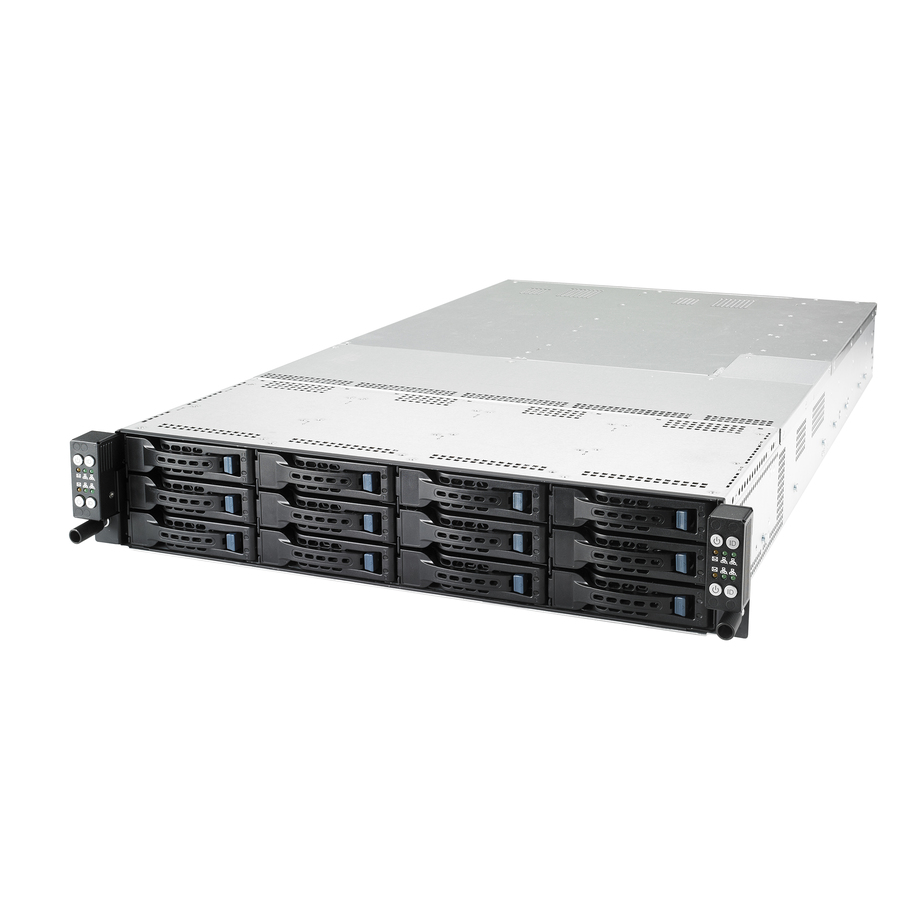

Based on the Intel® Socket R E5-2600 processor platform, the latest ASUS flagship server offers customers four individual nodes in a 2U space, with 16 DIMM slots supporting up to 512GB R-DIMM memory per node. Features include high efficiency 1+1 1620W 80+ Platinum power supplies, a fully modular design, hot-swap functionality, remote management, and high reliability, making the RS720Q-E7/RS12 an ideal choice for HPC, could computing, data center, and virtualization applications.
- Barebone System is compact, stylish, space-efficient, and portable, ideal for daily office and home use
- Windows Server 2008 R2 Standard OS support includes creative and productive tools you need for smooth workflows
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- Rack-mountable barebone system offers easy installation and convenient access for streamlined maintenance
- Provides 3 USB ports for responsive and expanded device connections without interruptions
- Gigabit Ethernet is highly efficient for large file transfers, making it ideal for backups and heavy data workflows
- DDR3 SDRAM slot operates at high bus speeds with low power use, improving performance and reducing heat generation
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon |
| Number of Processors Supported | 2 |
| QuickPath Interconnect Suppor | Yes |
| Processor Socket | Socket R LGA-2011 |
| QuickPath Interconnect | 8 GT/s |
| GPU / Graphics | |
|---|---|
| Graphics Memory Capacity | 16 MB |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 16 |
| Maximum Memory Supported | 512 GB |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 , 5 |
| RAID Supported | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Input Voltage | 220 V AC |
| Maximum Power Supply Wattage | 1620 W |
| Networking & Connectivity | |
|---|---|
| Number of Nodes | 4 |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C602-A |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of Expansion Slots | 1 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 3 |
| Number of 3.5" Bays | 3 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of SATA Interfaces | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
