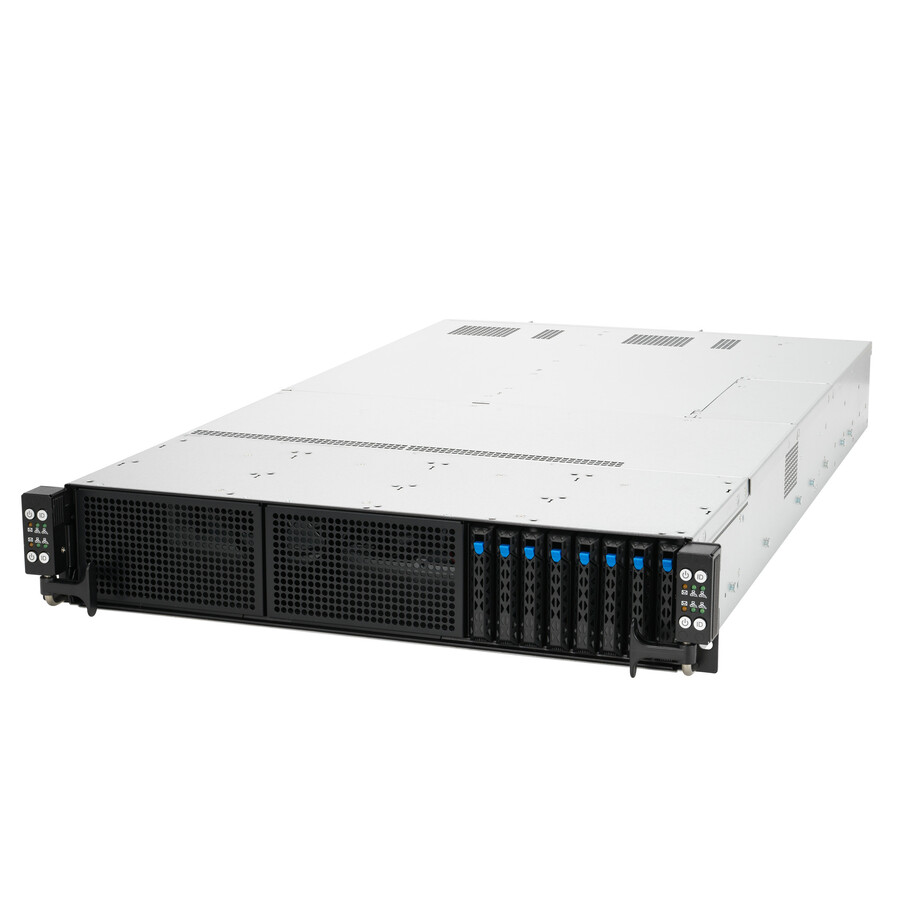

Great Scalability and High Performance Computing (HPC) with 4 nodes in a 2U Rack Sever
ASUS RS720Q-E10-RS8U is the ideal multi-node server powered by 3rd Gen Intel® Xeon Scalable processors, with each node supporting up to 16 DIMM, one PCIe® 4.0 slot, one OCP 3.0 and two M.2, and a total of eight NVMe/SAS/SATA drives.
3rd Gen Intel Xeon Scalable processors
The RS720Q-E9-RS8-S is built with the latest Intel® Xeon® Processor Scalable Family with 16 DDR4 Memory up to 3200MHz, and designed for the demand of high scalability, high density computing, and wide range of existing and emerging workloads.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility.
Cooling Solutions
Air or liquid-cooled solutions. Asetek's Direct-to-Chip (D2C) liquid-cooling technology achieving lower power-usage effectiveness (PUE) and optimized TCO for data centers.
Enhanced Security
PFR FPGA as the platform Root-of-Trust solution for firmware resiliency Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
- Powered by dual-socket 3rd Gen Intel Scalable
- processors with DDR4 Memory up to 3200MHz
- One PCIe 4.0 x16 slot and One OCP 3.0 module per node
- 8 x 2.5" Hot-swap Drive Bays support 8 x SATA/SAS/NVMe
- 3000W 80 Plus® Titanium power supplies
- Flexible air- and liquid-cooling solution
- Onboard ASUS ASMB10-iKVM
- ASPEED AST2600 controlle
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon Bronze |
| Number of Processors Supported | 2 |
| 64-bit Processing | Yes |
| Processor Generation | 3rd Gen |
| Processor Socket | Socket LGA-4189 |
| GPU / Graphics | |
|---|---|
| Graphics Memory Capacity | 64 MB |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Maximum Memory Supported | 6 TB |
| Storage | |
|---|---|
| Supported Storage Drive Inter | SAS |
| RAID Supported | Yes |
| Intel Optane Memory Ready | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Input Voltage | 230 V AC |
| Maximum Power Supply Wattage | 3000 W |
| Networking & Connectivity | |
|---|---|
| Number of Nodes | 4 |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Controller Type | Serial Attached SCSI (SAS) |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 2 |
| Total Number of Expansion Slots | 2 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 8 |
| Video Ports | |
|---|---|
| Number of VGA Ports | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
