Intel Z790 LGA 1700 ATX motherboard with 20+1+2 power stages, DDR5 support with AEMP II and DIMM Flex, Intel Wi-Fi 7 with ASUS WiFi Q-Antenna, five M.2 slots, PCIe 5.0 NVMe SSD slot onboard, PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release, two Thunderbolt 4 ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W, AI Overclocking, AI Cooling II, AI Networking, Two-way AI Noise Cancelation, and Aura Sync RGB lighting.
- Intel LGA 1700 socket: Ready for Intel Core 14th& 13thGen Processors, Intel Core 12thGen, Pentium Gold and Celeron Processors
- Robust Power Solution: 20+1+2 teamed power stages with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized VRM Thermals: Enlarged VRM heatsinks with premium HybridChill cooling, M.2 heatsinks with triple embedded backplates, high-conductivity thermal pads, and ROG Water-Cooling Zone
- Latest M.2 Support:Onboard PCIe 5.0 M.2 slot and four PCIe®4.0 M.2 slots, all with substantial cooling solutions
- Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C®ports, USB 20Gbps Type-C®front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI™ 2.1
- High-Performance Networking: On-board Intel®Wi-Fi 7 (802.11be) and Realtek 5 Gb Ethernet with ASUS LANGuard
- Intelligent Control:ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, Two-Way AI Noise Cancelation, AEMP II and DIMM Flex to simplify setup and improve performance
- Immersive Audio: ROG SupremeFX ALC4082 codec with ESS®ES9218 Quad DAC for up to 32-Bit/384 kHz playback
- Unmatched Personalization: 2-inch LiveDash OLED, three addressable Gen 2 headers and one RGB header, all configurable with ASUS-exclusive Aura Sync RGB lighting
- DIY Friendly Design:PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, and Clear CMOS button
- Renowned Software:Bundled 9-month Intel®Unison™ subscription, bundled 1-year AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86v

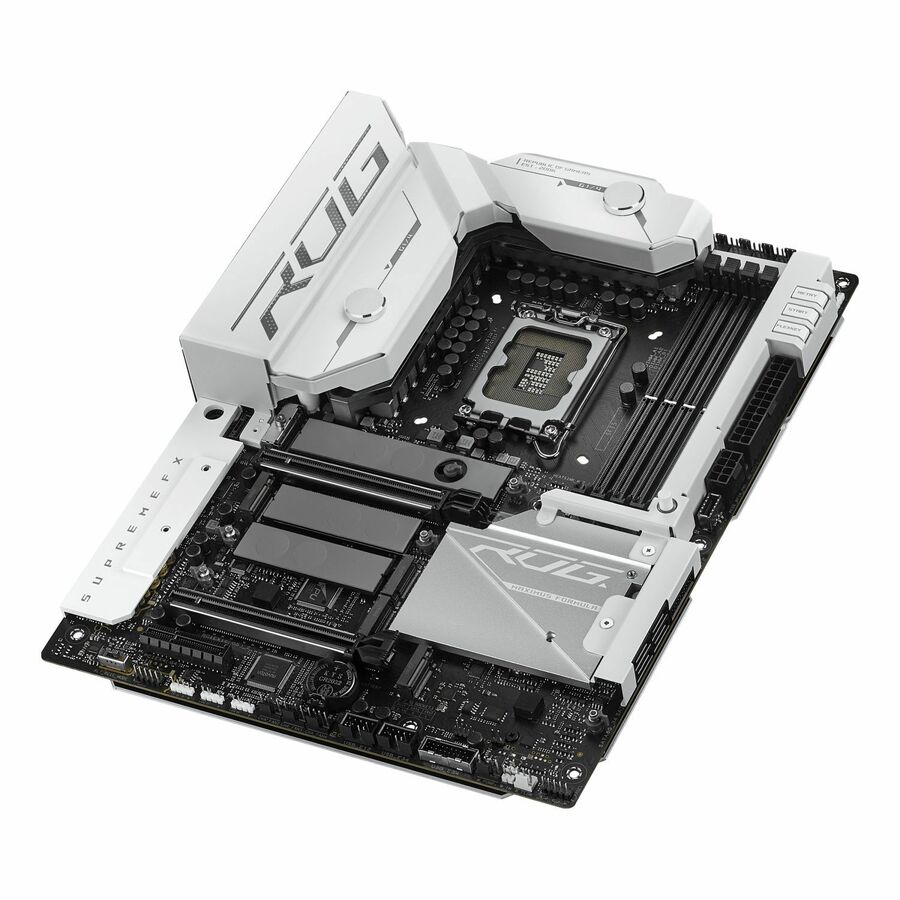

ROG Maximus Z790Formula
The ROG Maximus Z790 Formula is the ultimate motherboard to feature our head-turning Moonlight White aesthetic. Beneath this bold expression lies a powerhouse arsenal of features, including the exclusive HybridChill VRM cooling system ready to elevate 14th-gen Intel processors, advanced DDR5 settings, a multitude of PCIe 5.0 slots for both graphics cards and storage, blistering Intel Wi-Fi 7 networking and a full slate of customizable ARGB lightning to make your premium build truly stand out from the crowd.
ROG OVERCLOCKING TECHNOLOGIES
Maximize your CPU's performance potential with intuitive tools that offer advanced control and monitoring.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
