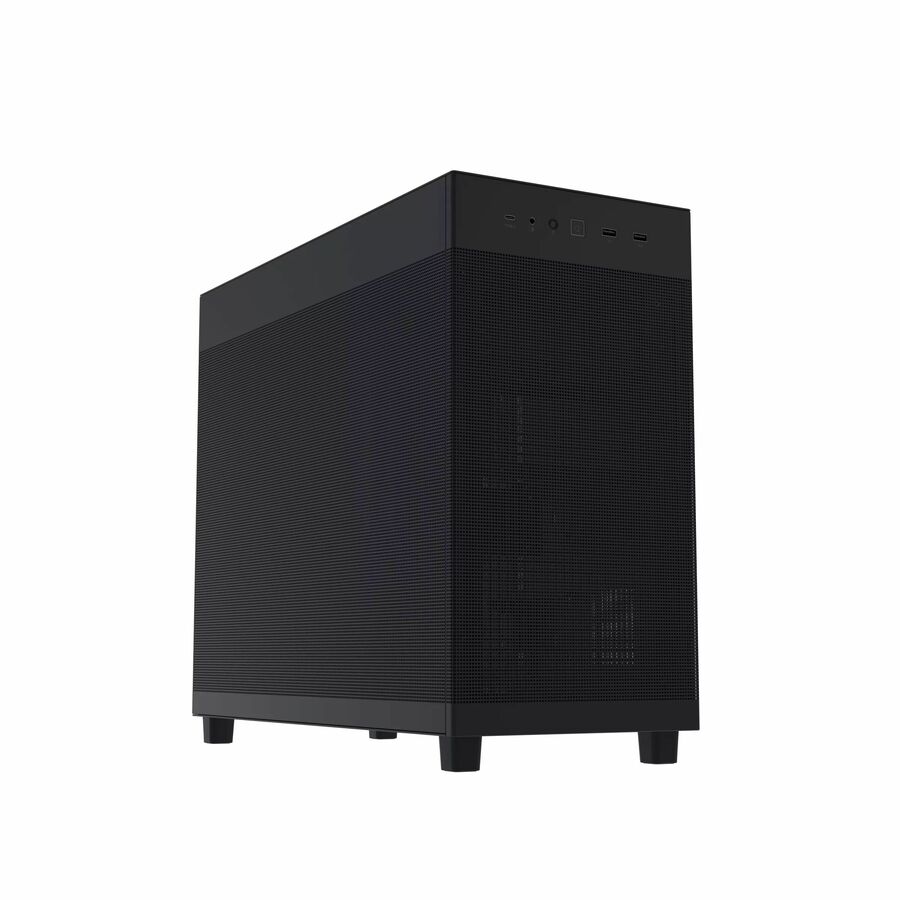

ASUS Prime AP303 - Mesh Panel
Compact Frame. Massive Potential.
The ASUS Prime AP303 is a compact 44-liter ATX chassis that accommodates 360mm radiators up to 60mm thick and graphics cards up to 360mm long. It features a graphics card bracket and holder to keep cards firmly mounted, plus an internal power cable that delivers 15 amperes to maintain stable power delivery for high-end PC builds.
Exceptional Space Efficiency
The AP303 is designed to maximize internal space, enabling installation of graphics cards up to 360mm long, radiators up to 360mm long and ATX power supplies up to 180mm long.
Superior Stability
Under Heavy Loads
Alongside the graphics card holder is a graphics card bracket that supports GeForce RTX 50 Series graphics cards from 310mm to 360mm long. It securely mounts the graphics card with screws, reducing sagging and movement.
Efficient Cooling
With support for up to 360mm radiators and up to seven fans, the AP303 is primed to deal with the thermal scenarios of high-performance hardware.
Quasi-Filter Mesh Panels
Metallic quasi-filter mesh panels are designed to enhance airflow and minimize dust ingress, delivering both performance and protection in a sleek style.
Pioneering Cable for High-End Systems
The UL-certified internal power cable delivers 15 amperes of current to ensure stable operation for high-end systems with a 1200W power supply.
USB Type-C® Support
AP303 includes one 20Gbps Type-C port and two USB 3.0 ports for future-ready and backward-compatible connectivity.
Unified Front I/O Header
A thoughtful header design makes connecting Front Input/Output (FIO) components to the motherboard easy.
Organized Cabling
A 34mm-wide compartment behind the motherboard provides ample space to neatly organize cables, despite the relatively compact dimensions of the chassis.
Tool-Free Side Panels
The side panels of the AP303 use a simple but secure clip mechanism to attach to the case. This makes them easy to remove, providing easy access to the interior of the chassis.
Multiple Colors and Styles
The AP303 is available in either black or white, giving you options to create a rig that blends in or stands out. In addition, the tempered glass side panel version provides an elegant appearance, whereas the mesh side panel version boosts airflow efficiency and thermal performance.
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- 3 bays help in upgrading the system by increasing number of hardware components
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 14.17" |
| Power & Battery | |
|---|---|
| Power Supply Wattage | 1200 W |
| Maximum PSU Length | 7.09" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| USB Port Details | 2 x USB 3.2 Gen 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Audio | |
|---|---|
| Microphone | Yes |
| General Features | |
|---|---|
| Motherboard Supported | ATX |
| Cooler Type | Fan Cooler |
| Installed Fan Size | 4.72" |
| Installed Fan Size Details | 1 x 120mm |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 6.50" |
| Manufacturer | ASUS Computer International |
| Number of Fans Supported | 4 |
| Number of Fans Installed | 1 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 7 |
| Drive Bays | |
|---|---|
| Number of Internal 2.5"/3.5" | 1 |
| Number of Total Expansion Bays | 3 |
| Number of Internal 2.5" Bays | 2 |
