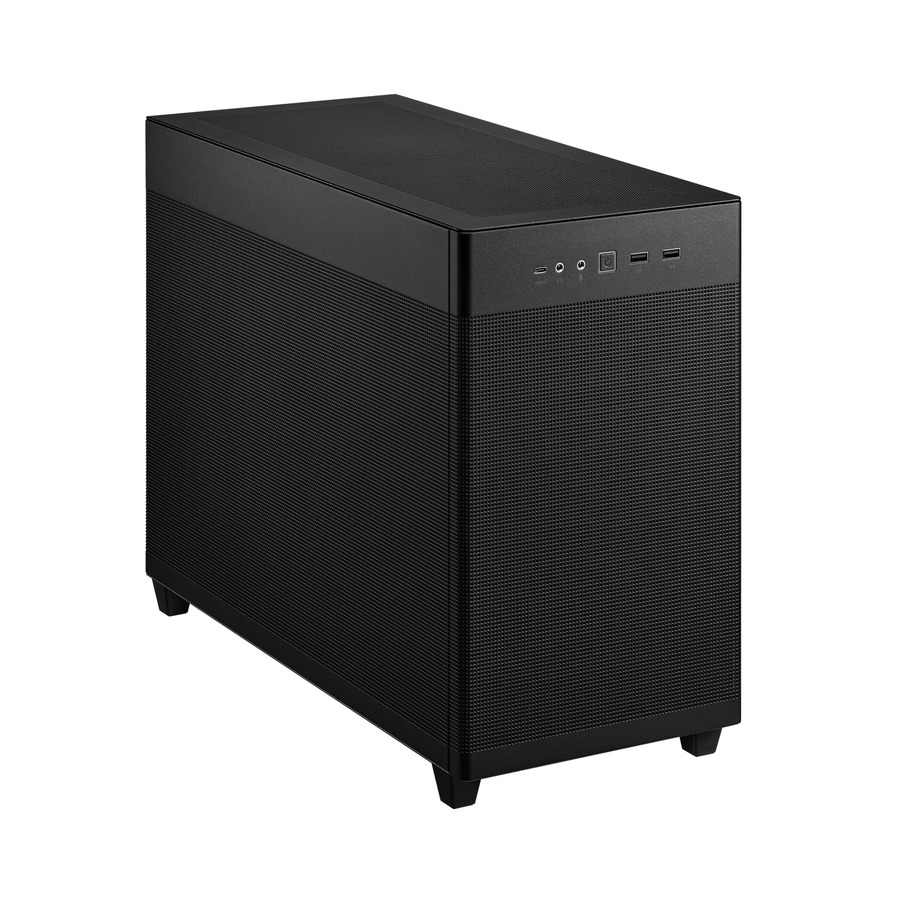

The ASUS Prime AP201 is a stylish 33-liter MicroATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.
- Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.
- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
- Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
GO BIG. STAY COMPACT. 33-LITERS OF COOL
The ASUS Prime AP201 is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels with a quasi-filter mesh also provide easy access and enhanced airflow, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.
QUASI-FILTER MESH PANELS | BREATHE FREELY
The AP201 mesh design is comprised of over 57,000 precision-machined 1.5mm holes, structured to increase airflow, reduce dust ingress, and collectively provide a compelling view of the components within your build.
OPTIMIZED FOR COOLING | STAY CHILLED
With support for 280 and 360mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
REMOVABLE DUST FILTER | SPECS, NOT SPECKS
The two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further.
INDUSTRY-LEADING SPATIAL EFFICIENCY | LOAD UP
Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 4 bays mean more PC components can be added to enhance system's performance
- The small-sized tower offers a support up to 6 fan(s) installation and power-pack performance along with portability
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| Power & Battery | |
|---|---|
| Number of Power Supplies Supp | 1 |
| Number of Power Supplies Inst | 0 |
| Power Supply Installed | No |
| Maximum PSU Length | 7.09" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Small Tower |
| General Features | |
|---|---|
| Motherboard Supported | Mini ITX |
| Cooler Type | Fan/Liquid Cooler |
| Installed Fan Size | 4.72" |
| Maximum CPU Cooler Height | 6.69" |
| Manufacturer | ASUS Computer International |
| Number of Fans Supported | 6 |
| Number of Fans Installed | 1 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Drive Bays | |
|---|---|
| Number of Internal 2.5"/3.5" | 3 |
| Number of Total Expansion Bays | 4 |
| Number of Internal 2.5" Bays | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Packaging & Origin | |
|---|---|
| Package Type | Retail |
