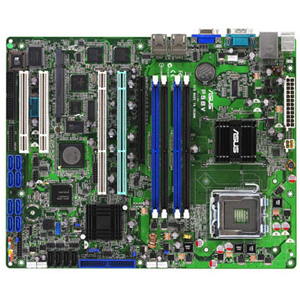

The P5BV/SAS Server Board delivers a host of new features and latest technologies, making it another standout in the long line of ASUS quality motherboards!
- Compatible Intel Core 2 Quad processor is best for both, home and business environment because of its remarkable performance and impeccable responsiveness in multi-threading
- DDR2 SDRAM compatible slot - Allows the memory to operate at 400 MHz data bus speed while consuming minimal power. Thus, gives an optimal computer performance with an improved memory heat dissipation.
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- 4 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon Quad-core |
| Processor Technology | Enhanced SpeedStep Technology |
| Front Side Bus | 800 MHz |
| Total Processor Supported | 1 |
| 64-bit Processing | Yes |
| Processor Socket | Socket T LGA-775 |
| GPU / Graphics | |
|---|---|
| Graphics Controller Memory | 32 MB |
| Graphics Controller Model | Z9s |
| Onboard Video | On-board Video Chipset |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR2 SDRAM |
| Memory Speed Supported | 667 MHz |
| Memory Standard | DDR2-667/PC2-5300 |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 8 GB |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 1 |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 4 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Gigabit Ethernet | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Onboard LEDs Header | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | 3200 |
| Controller Type | Ultra ATA/100 (ATA-6) |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 1 |
| Number of PCI-X Slots | 2 |
| Number of PCI Slots | 2 |
| Total Number of Expansion Slots | 6 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of SAS Interfaces | 8 |
| Number of IDE Interfaces | 1 |
| Number of SATA Interfaces | 4 |
| Serial Port | Yes |
