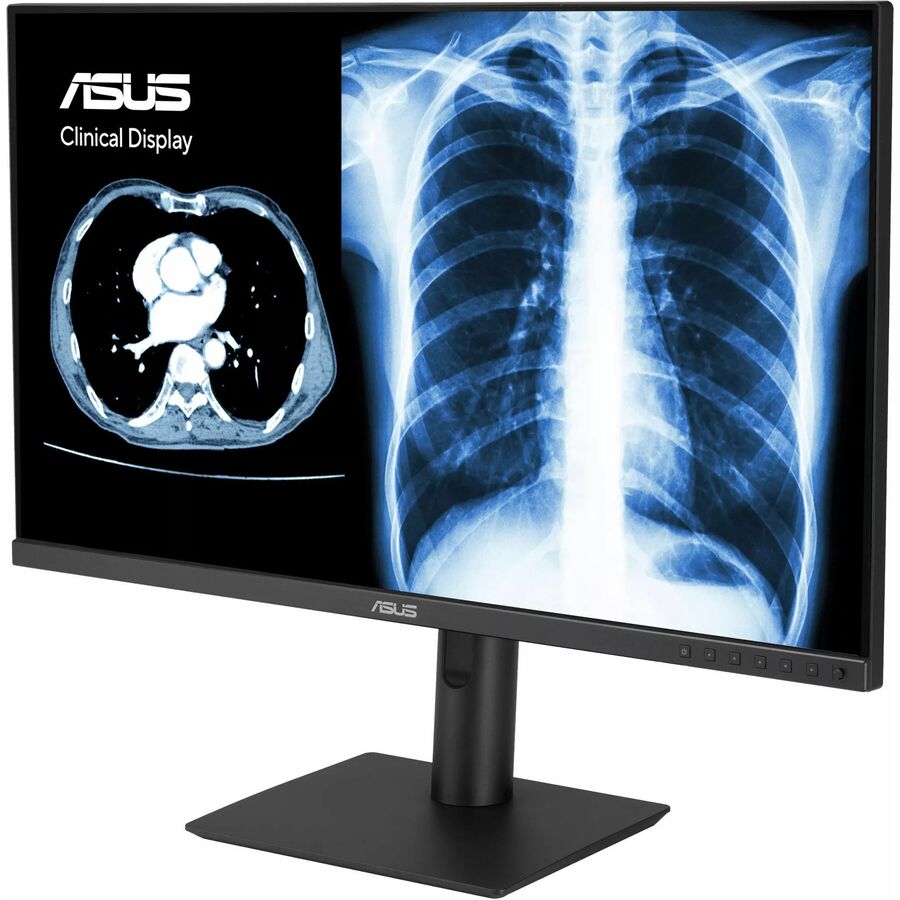

ASUS Clinical Displays provides comprehensive line-up targeting for every HealthCare institution's needs. ASUS Clinical Displays are factory calibrated with DICOM® Part 14 GSDF (Grayscale Standard Display Function) compliance to ensure visual accuracy and consistency in finest details. ASUS MH2741A features 27-inch 3.6MP Anti-Glare, Low-Reflection (AGLR) IPS panel, ASUS exclusive Hardware Calibration Technology supports auto calibration to keep DICOM long term accuracy. ASUS Clinical Displays delivers high-performance, precise and stable capabilities to fit any scenario.
Lifelike Views Vith 178° Wide View Angle
ASUS MH2741A IPS panel provides 178° viewing angles, both horizontally and vertically, so you can reproduce excellent contrast, ensuring the accurate and clear medical images from almost any direction.
Factory-Precise for DICOM Excellence
To provides reliable images and stable grayscale, ASUS Clinical Displays compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 GSDF standard, and also pass AAPM TG270 and IEC62563-1 compliance test.
Each ASUS clinical display is factory calibrated to guarantee DICOM color accuracy. The display then undergoes stringent testing to ensure smoother color gradations, better uniformity with Just-Noticeable Difference (JND) <10%.
ASUS exclusive DICOM Preset
ASUS exclusive DICOM Preset Mode provides multiple ambient brightness setting (0 lux, 50 lux, 100 lux) and auto detected brightness setting through ambient light sensor to provide different DICOM curves for different environmental changes.
Optimal Screen ResolutionIn different medical imaging modalities, the presentation of medical images can differ in terms of both size and the amount of information displayed. ASUS Clinical Displays can simulate multiple resolutions to display varies source of medical image with onscreen dot to dot present.
Long-lasting Antibacterial Treatment
The monitor head and hotkeys on MH2741A feature an antibacterial ionic silver treatment*. By preventing bacteria adhesion by up to 99.9%, it keeps key areas of the monitor clean and hygienic, potentially reducing the spread of harmful bacteria. ASUS MH2741A has been subjected to the ISO 22196 Antimicrobial Activity and Efficacy tests conducted by independent testing lab SGS.
How Ionic Silver works
Positively-charged silver (Ag+) ions bind with the cell walls of negatively-charged microbes and bacteria, disrupting their internal functions and killing them off.
Connect to your workflow
MH2741A offers a USB-C, two DisplayPort1.4 (in, out), HDMI(v2.0) and USB3.2 hub for compatibility with current and future displays and peripherals. It also features an earphone jack.
Environmental Certification
ASUS MH2741A is stringently tested to meet the requirements of world-leading sustainability certifications. These tests include a comprehensive database of up-to-date criteria, independent verification, and a structured system for continuous improvement.
Eco-friendly Packaging
ASUS MH2741A packaging are made of at least 80% recyclable cardboard. ASUS has designed the packaging to minimize weight and volume, which helps conserve natural resources and allows more devices to be transported in a single shipping container.
Energy-Efficient Features
ASUS MH2741A has a power-saving Eco-mode, and achieve minimize power consumption with hard-switch off.
- 27" viewable screen size ensures sharp, vibrant visuals for a consistently engaging and responsive viewing experience
- 5 ms response time enhances responsiveness and visual sharpness, ideal for action-packed games, sports, and dynamic media
- 16:9 widescreen layout enhances multitasking and visual depth, making it suitable for both creative workflows and media consumption
- Furnishes captivating visuals with 350 Nit brightness levels that deliver clear, vibrant images in both bright and dim settings
- Anti-glare lcd monitor reduces ambient reflections, improving screen visibility and comfort in bright or mixed lighting environments
- 2560 x 1440 maximum resolution ensures vivid, crystal-clear output with consistent pixel accuracy
- LCD monitor runs cooler with low power use, offering extended performance and comfort for long work or entertainment sessions
- 60 Hz standard refresh rate minimizes image blur for crisp, fluid visuals in dynamic scenes and high-speed video playback
- VESA mount support enables secure, space-savi
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| GPU / Graphics | |
|---|---|
| HDCP Supported | Yes |
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| Gamma | Gamma 2.4 |
| Screen Size Class | 27" |
| Viewable Screen Size | 27" |
| Maximum Resolution | 2560 x 1440 |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 350 Nit |
| Response Time | 5 ms |
| Standard Refresh Rate | 60 Hz |
| Color Supported | 16.7 Million Colors |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Native Contrast Ratio | 900:1 |
| Pixel Pitch | 0.23300 mm x 0.23300 mm |
| Active Display Area (H x V) | 23.49" x 13.21" |
| Response Time Details | 5 ms GTG |
| USB Ports | |
|---|---|
| Total Number of USB Type-C Po | 1 |
| USB | Yes |
| Number of USB Ports | 5 |
| USB Type-C | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Total Number of HDMI Ports | 1 |
| Number of HDMI 2.0 Ports | 1 |
| DisplayPort | |
|---|---|
| Number of DisplayPort 1.4 Por | 2 |
| DisplayPort | Yes |
| Number of DisplayPorts | 2 |
| Audio | |
|---|---|
| Speakers | No |
| Size / Dimensions | |
|---|---|
| Weight with Stand (Approximat | 14.77 lb |
| Height with Stand | 21.13" |
| Depth with Stand | 7.76" |
| Width with Stand | 24.15" |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Mount Type | Wall Mountable |
| Appearance | |
|---|---|
| Adjustable Stand | Yes |
| Stand Adjustments | Swivel |
| General Features | |
|---|---|
| Built-in Devices | USB Hub |
| Frequency | 60 Hz |
| Manufacturer | ASUS Computer International |
| Compliance & Certification | |
|---|---|
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Energy Star | Yes |
