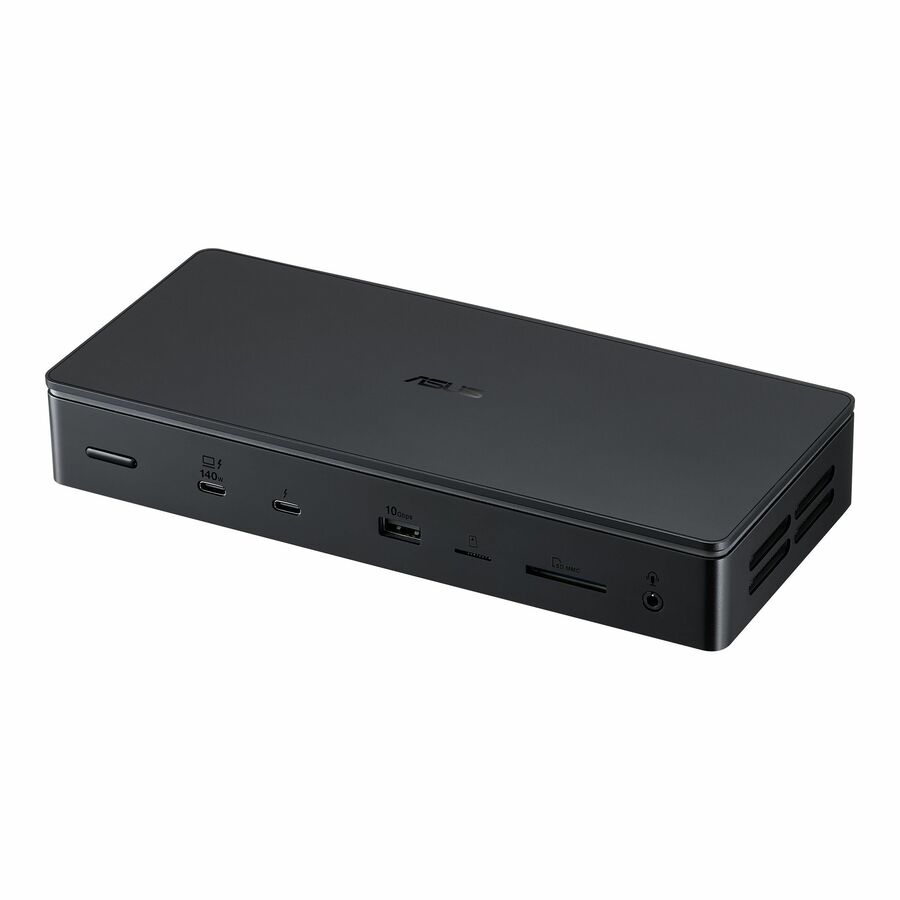

ASUS Master Thunderbolt™ 5 Dock | Unleash lightning-fast potential
ASUS Master Thunderbolt™ 5 Dock is a 13-in-1 dock designed for creators, giving them the ability to turn their laptop into a powerful workstation with just a single cable connection. The dock is able to support up to three 4K displays, super 80Gbps data transfer speed via three Thunderbolt 5, read two memory cards, and even includes an SSD slot for additional storage. Built-in LEDs on the underside of the device offer adjustable ambient lighting to add a futuristic aesthetic to any creative space.
PRODUCTIVITY | Triple 4K display support with Thunderbolt™ 5
ASUS Master Thunderbolt™5 Dock boasts three Thunderbolt™5 ports to support up to two 8K, or up to three 4K displays, enabling more productive multitasking and offering creative professionals greater levels of detail to work with.
VERSATILITY | Unparalleled 8K visuals
Enthralling 8K resolution viewing experiences are possible with Thunderbolt™5 connectivity. Check the table below for specific resolutions for all monitor combinations.
- 3 Displays 3 x 4K 144 Hz
- 2 Displays 2 x 8K 60 Hz
- 1 Display 1 x 8K 60 Hz
CONNECTIVITY | Multidevice connections
ASUS Master Thunderbolt™ 5 Dock includes a multitude of I/O ports that enable simultaneous connections to a myriad of devices, including cameras, drones, and others. Plus, SD and microSD card readers give users the flexibility to back up data from various devices quickly and easily.
SPEED | Faster data transfers
2.5G Ethernet and Thunderbolt™5 connectivity facilitate high-speed file transfers, so users get more done in less time - it takes just 6 seconds to transfer a 20 GB image file. Additionally, the UFP Thunderbolt™5 port offers convenient PD3.1 140W passthrough charging for mobile devices and other peripherals.
SHARE | Thunderbolt™Share unlock PC-to-PC experiences
Experience high-speed Thunderbolt™Share with ASUS Master Thunderbolt™5 Dock. Download the software in the link below and enjoy these benefits: secure and fast PC-to-PC access for sharing screen/monitor, keyboard, mouse, and storage. Sync folders or drag-and-drop files between PCs at Thunderbolt™speeds. Quickly transfer data from an old computer to a new one. Features hardware-based security, making it commercially ready.
SCALABILITY | Effortless SSD Storage Expansion
The toolless-access design of ASUS Master Thunderbolt 5 Dock includes a magnetic top cover that can be removed to reveal the concealed M.2 NVMe® PCIe® 4.0 SSD slot for quick and easy storage upgrades and installation without the need for any tools. The slot enables supports up to 64Gbps transfer speeds - twice that of Thunderbolt™ 4 - for efficient handling of large files.
DESIGN | Modern aesthetics with built-in ambient lighting
The streamlined, durable aluminum chassis of ASUS Master Thunderbolt™5 Dock includes ambient RGB lighting to give it a visual aesthetic that blends seamlessly in any space, be it a professional design studio or home office.
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
- Charging capability provides a safer and more convenient charging experience
- Thunderbolt 5 host interface allows quick transmission of data at a higher rate for your convenience
- Docking Station provides a dependable and fast charging solution for your notebook with maximum productivity
- 10 GB/s maximum data transfer rate for dependable access and retrieval of data and information with added usability
- LED Power Indicator feature for maximum usage efficiency and convenience
- 2.5 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- Power Adapter power source type for your docking station better reliance and maximum energy dependability
- 4 USB ports offers a more refined structure and safer to use connectivity
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 3 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 8K @ 60Hz |
| Supported Resolutions | 7680 x 4320 |
| Power & Battery | |
|---|---|
| Charging Capability | Yes |
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 3 |
| USB Power Delivery | 140W |
| Total Number of USB Ports | 4 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 4 |
| Number of USB 3.0 Ports | 1 |
| Thunderbolt Ports | |
|---|---|
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 3 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Card Reader | |
|---|---|
| Memory Card Reader | Yes |
| Memory Card Supported | microSD |
| Security | |
|---|---|
| Security Slot Type | Kensington Security Slot |
| Kensington Security Slot | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 10 GB/s |
| Manufacturer | ASUS Computer International |
| Misc Ports | |
|---|---|
| Host Interface | Thunderbolt 5 |
| Cables | |
|---|---|
| Cable Length | 3.28 ft |
