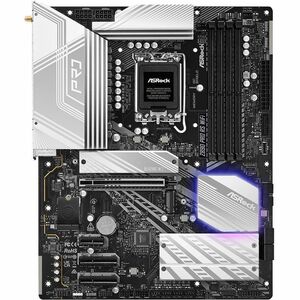

Z890 Pro RS WiFi
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
PRO SERIES
Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.
Performance Gains from Intel® 200S Boost
ASRock Z890 motherboards now support Intel®200S Boost through a simple BIOS update.Users can effectively "upgrade" their existing Intel®Core Ultra processors and enjoy a significant performance boost
Visit the ASRock official website to download the latest BIOS and experience the performance upgrade brought by Intel®200S Boost.
Performance | Optimized VRM Design | Durable Capacitor | Durable Cap with 1000uF Capacitance
The durable capacitors with 1000uF capacitance offers several benefits:
Higher Capacitance:
Greater charge storage for better support under high loads.
Lower Ripple:
Reduced power output fluctuations, improving quality.
More Stable Output Current:
Stable power supply, minimizing voltage impacts.
Better Performance & System Stability:
Increased reliability and consistent performance.
VRM DESIGN | 16+1+1+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dr.MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Power Connector | Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
High Speed M.2 Solution | PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
- Supports Intel®Core™ Ultra Processors (Series 2)(LGA1851)
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 9066+ (OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort,
- 2 Thunderbolt™ 4/USB4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
- 1 Blazing M.2 (PCIe Gen5x4)
| Brand | |
|---|---|
| Brand | ASRock |
| CPU / Processor | |
|---|---|
| Processor Supported | Core Ultra |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 9066 MHz |
| Memory Form Factor | CUDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 1 |
| Total Number of Onboard USB P | 9 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Thunderbolt Ports | |
|---|---|
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASRock, Inc |
| Brand Compatibility | Intel |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 4 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 2 |
| PCI Express Standard | PCI Express 5.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 5 |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Compliance | Energy-using Products Directive (EuP) |
