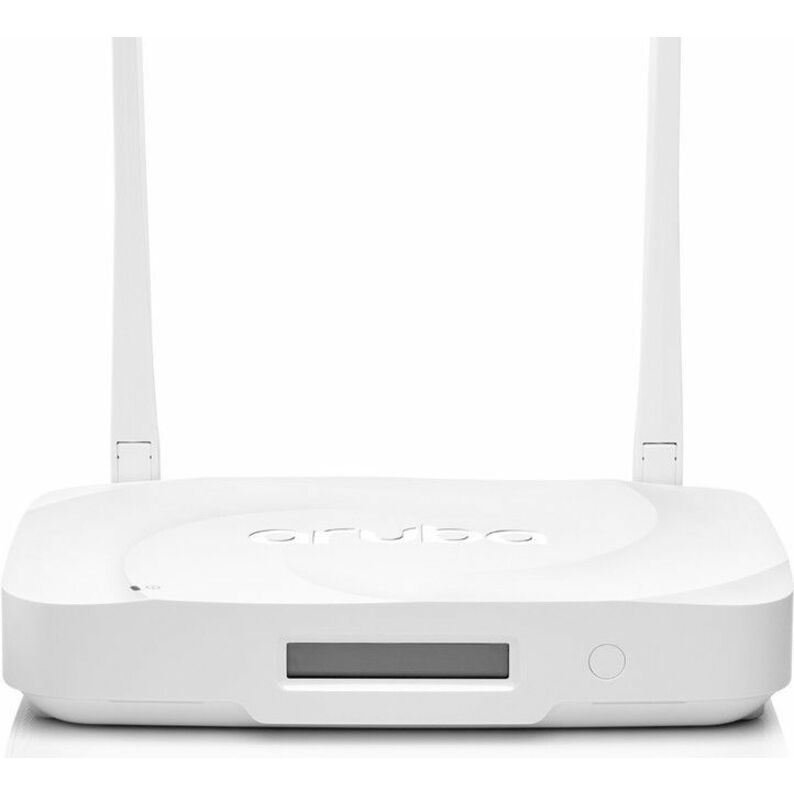

HPE ARUBA NETWORKING 600R SERIES REMOTE ACCESS POINTS
Wi-Fi 6E APs with wired connectivity - ideal for mission-critical remote work and small branches
PRODUCT OVERVIEW
HPE Aruba Networking 600R Series Remote Access Points enable IT teams to deliver a seamless and secure user experience to remote workers and small branch environments. The remote access points are based on Wi-Fi 6E, achieving a combined maximum 3.6 Gbps data rate (using 5 GHz and 6 GHz bands) and increasing capacity by up to 1200 MHz with more 160 MHz channels to better support ever-increasing Wi-Fi demands, especially for latencysensitive, high-bandwidth video communications. They can also take advantage of an optional cellular module for high-speed backup or primary connectivity
HOME OFFICE/SMALL OFFICE USE
IT teams are tasked with ensuring a secure and reliable experience for a highly distributed workforce that is accessing data center and cloud-based applications over consumer broadband and cellular connections that are outside IT's control and visibility. With HPE Aruba Networking 600R Series Remote Access Points managed by HPE Aruba Networking Central, IT can remotely deploy and centrally manage secure network connectivity for hundreds or even thousands of remote workers or small office employees to deliver an in-office experience - without need for a gateway.
Remote workers can connect wireless clients (laptops, smartphones, tablets) as well as wired clients, such as VoIP phones, and access mission-critical applications reliably and securely via a 2.5 Gbps uplink/downlink Ethernet port, dedicated 1 Gbps uplink port, and three dedicated downlink ports.
IT benefits from a unified approach that enables staff to configure, troubleshoot, and optimize network performance across campus, branch, and remote work environments. Built in SD-WAN intelligent route and tunnel orchestration and policy-based routing drives operational efficiencies and optimizes network performance. Comprehensive WAN health dashboards assist in troubleshooting problems quickly and boosting user satisfaction. Refer to the technical brief for more information.
WI-FI 6E FOR FASTER SPEEDS
600R Series APs are designed to take advantage of Wi-Fi 6E and the 6GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. Its two 2x2 MIMO radios deliver a maximum combined data rate of up to 3.6 Gbps when configured for concurrent 5 GHz and 6 GHz operation.
Wi-Fi 6E provides up to 1200 MHz of additional unlicensed spectrum in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and augmented reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.
Device class support
HPE Aruba Networking 600R Series Remote Access Points support the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services, which is required for standard class APs.
Global readiness
While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching the 6 GHz band differently. HPE Aruba Networking 600R Series Remote Access Points are set up to automatically update regulatory rules once Wi-Fi 6E regulations have been approved and certified.
- Leverages cloud-native HPE Aruba Networking Central to provide zero touch provisioning and a single pane of glass for Day 0 to Day N management across campus, branch, and remote work environments.
- Multiple uplink/downlink options: 2.5 Gbps uplink/ downlink Ethernet port, dedicated 1 Gbps uplink port, and three dedicated downlink ports to eliminate bottlenecks.
- Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and augmented reality/virtual reality applications.
- Offers low power consumption - virtually unrestricted operation from an 802.3af (class 3) POE source.
- Cellular module provides backup connectivity and higher resiliency.
- Delivers up to 3.6 Gbps combined peak data rate (when using 5 GHz + 6 GHz operation).
- Unlocks the 6 GHz band for up to triple the capacity of previous generations.
| Brand | |
|---|---|
| Brand | Hewlett Packard Enterprise |
| Power & Battery | |
|---|---|
| Power Consumption | 4.90 W |
| Networking & Connectivity | |
|---|---|
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth Standard | Bluetooth 5 |
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Wireless Transmission Speed | 3.60 Gbit/s |
| Frequency Band | 6 GHz |
| Network Band | Tri Band |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB 2.0 Type A |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 5 |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Antenna Form Factor | Internal |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA2-MPSK |
| General Features | |
|---|---|
| AI-powered | Yes |
| Indoor/Outdoor | Indoor |
| Manufacturer | Hewlett Packard Enterprise |
| Misc Ports | |
|---|---|
| Management Port | Yes |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
