APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 208V, 4x L6-20R+2x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit [TAA]

$ 12,169.99 $ 12,169.99
$ 12,169.99

$ 12,169.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Energy Efficiency Certificati
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Width
  • RoHS Exemption Information
  • Environmental Profile Availab
  • Product Take Back Program
  • End of Life Manual Availabili
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Network Management
  • Replaceable Battery
  • Phase
  • USB
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Mounting Location
  • Rack Height
  • Mounting Preference
  • Battery Chemistry
  • Typical Battery Recharge Time
  • Input Voltage
  • Output Voltage
  • TAA Compliant
  • Energy Star
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Application/Usage
  • Manufacturer Website Address
  • For Country/Region
  • Load Capacity (Watt)
  • Load Capacity (VA)
  • Waveform Type
  • Surge Energy Rating
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

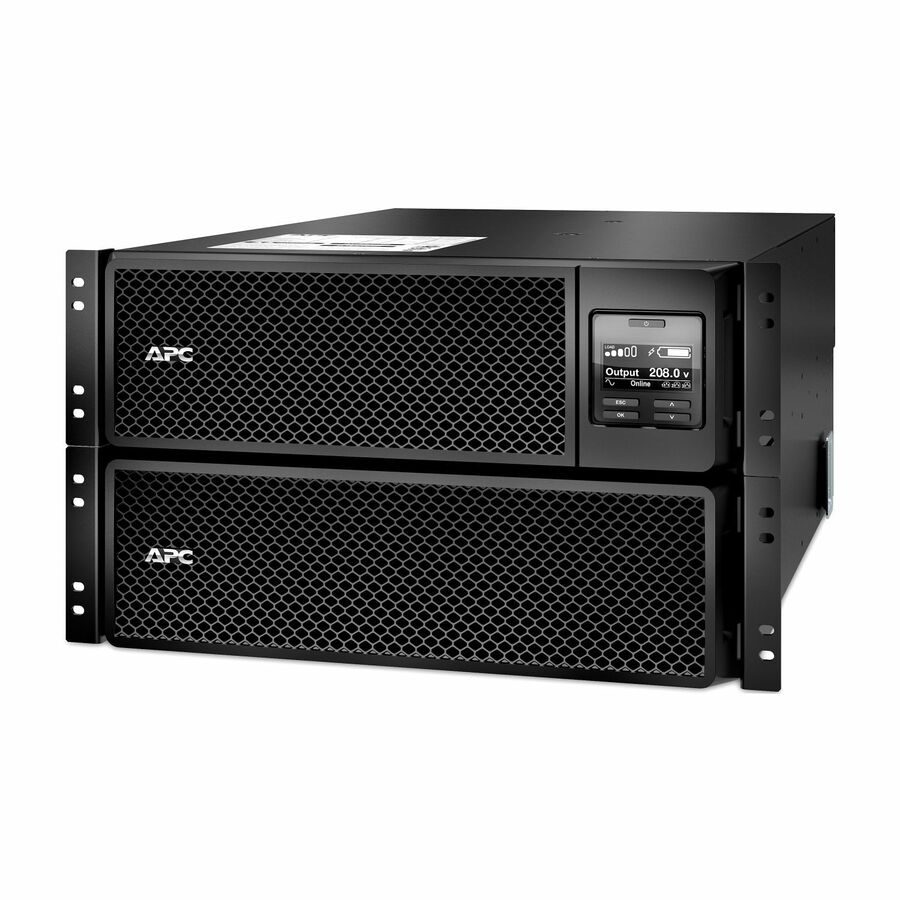

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 2x NEMA L6-30R and 4x NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

More from the Manufacturer

  • 10kVA/10kW online double-conversion (pure sine wave output) UPS in a 6U rackmount form factor
  • Ideal for protecting critical servers, storage, networking equipment, medical labs, and light industrial applications.
  • Includes a Network Management Card for remote monitoring and control.
  • SmartSlot allows for additional communication options.
  • Extended runtime capability not currently available for this Made in America UPS.
  • Includes rail kit for easy rack mounting.
  • 1-Year Secure Network Management Card subscription included.
Brand
Brand Schneider Electric SA
Power & Battery
Replaceable Battery Yes
Phase Single Phase
Receptacle Detail 1 x Hard Wire 3-wire (2PH + G)
Receptacle Type Hard Wire 3-wire (2PH + G)
Plug/Connector Type Hard Wire 3-wire (2P + E)
Battery Chemistry Lead Acid
Typical Battery Recharge Time 1.50 Hour
Input Voltage 208 V AC
Output Voltage 208 V AC
Load Capacity (Watt) 10 kW
Load Capacity (VA) 10000 VA
Waveform Type Pure Sine Wave
Surge Energy Rating 480 J
Networking & Connectivity
Network Management SNMP/Webcard
USB Ports
USB Yes
Size / Dimensions
Form Factor Rack-mountable
Mounting Location Front
Rack Height 6U
Mounting Preference No Preference
General Features
Manufacturer Schneider Electric SA
For Country/Region United States
Compliance & Certification
Energy Efficiency Certificati ENERGY STAR 2.0
Product Take Back Program Yes
TAA Compliant Yes
Energy Star Yes
