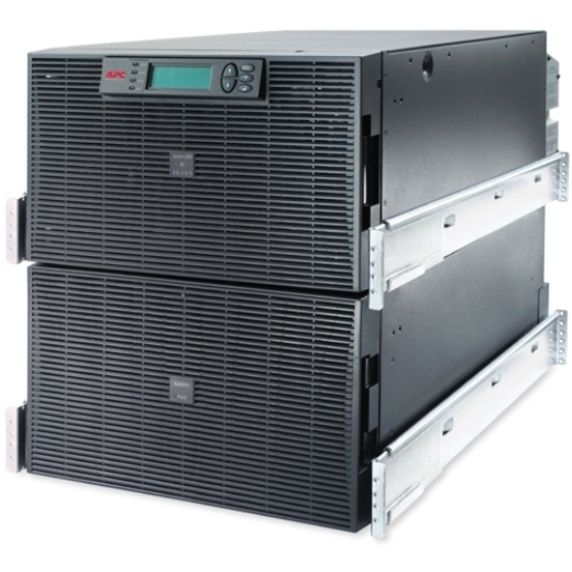

The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as IEC 60230 C19 and IEC Jumpers. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 21 |
| Emergency Power OFF | Yes |
| Overload Protection | Yes |
| Receptacle Detail | 2 x IEC Jumper |
| Receptacle Type | IEC Jumper |
| Plug/Connector Type | Hard Wire 5-wire |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Maintenance-free/Sealed/Spill Proof |
| Typical Battery Recharge Time | 2.50 Hour |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Load Capacity (VA) | 20 kVA |
| Waveform Type | Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 12U |
| General Features | |
|---|---|
| Bypass Switch | Static |
| Manufacturer | Schneider Electric SA |
| Expansion Slots | |
|---|---|
| Modular Slots | SmartSlot |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
