Advantech 16GE PoE + 4G SFP Ports Managed Redundant Industrial PoE Switch

$ 1,869.99 $ 1,869.99
$ 1,869.99

$ 1,869.99 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Redundant Power Supply Suppor
  • Network Technology
  • Manageable
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Port/Expansion Slot Details
  • Form Factor
  • Product Material
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • Environmentally Friendly
  • Environmental Compliance
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

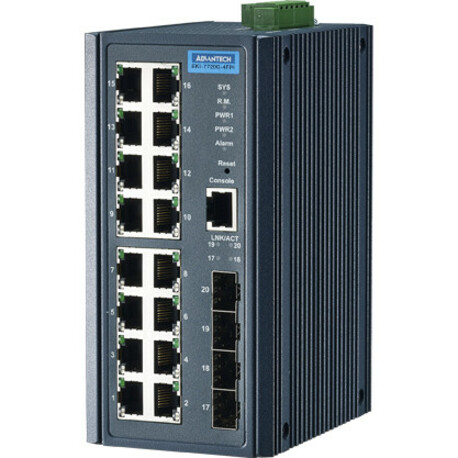

The EKI-7720G-4FPI Gigabit managed PoE switch comes with 16 10/100/1000BaseT(X) ports with 802.3af/at supported and 4 Giga SFP ports. It features 16 IEEE802.3af/at PoE ports, -40~70°C operating temperature, and Din-Rail/Wall-Mount installation options, making it ideal for application which requires high-bandwidth transmission, more PoE ports, and Din-Rail installation.

In addition, it is also embedded with Advantech exclusive features like IXM which benefits users for fast deployment and can dramatically save engineers time and costs, X-Ring Pro which achieves ultra-high speed recovery time of less than 20ms to ensure network stability, and Security Pack which protects your network from internal intrusion.

  • 16 x Gigabit Ethernet ports + 4 x SFP ports
  • Support up to 16 x IEEE 802.3at/af PoE ports for PD demands
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
  • IXM function for fast deployment
  • Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • Supports NMS for easy and visualized to monitor and manage network remotely
  • Dual 48 ~ 57VDC power inputs and 1 x relay output
Brand
Brand Advantech Co.
Power & Battery
Redundant Power Supply Suppor Yes
PoE Budget 420 W
Input Voltage 57 V DC
Power Source PoE
Power Consumption 16 W
Networking & Connectivity
Network Technology 10/100/1000Base-TX
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 16
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Wall Mountable
General Features
Manageable Yes
Manufacturer Advantech Co., Ltd
Expansion Slots
Total Number of Expansion Slots 4
Expansion Slot Type SFP (mini-GBIC)
Misc Ports
Port/Expansion Slot Details 4 x Expansion Slots
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Compliance & Certification
Environmentally Friendly Yes
