AddOn 10/100/1000Base-TX(RJ-45) to 1000Base-BXD(SC) BiDi SMF 1550nmTX/1490nmRX 60km Media Converter

$ 284.99 $ 284.99
$ 284.99

$ 284.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • USB
  • Network (RJ-45)
  • DVI
  • Fiber Mode Supported
  • Management Port
  • Total Number of Ports
  • Fiber Optic Cable Wavelength
  • Number of SC Ports
  • Form Factor
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Media Type Supported
  • Input Voltage
  • Maximum Distance Supported
  • TAA Compliant
  • Packaged Quantity
  • Country of Origin
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Compatibility
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

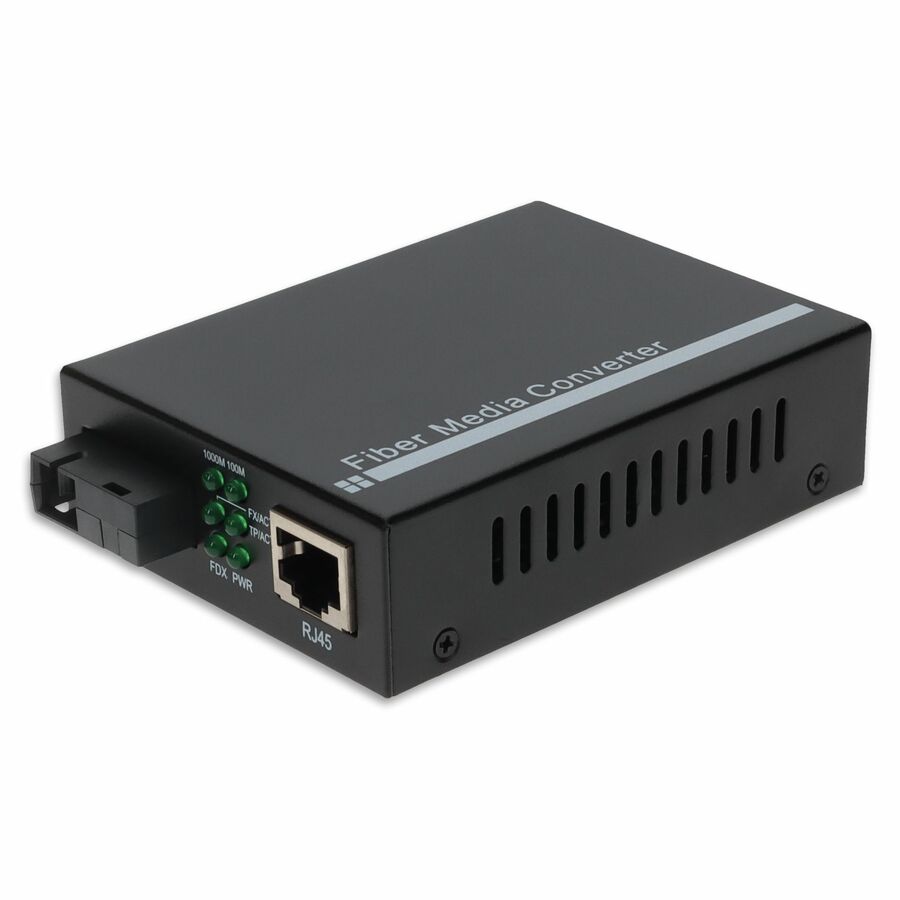

This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-BXD(SC) via a 1550nmTX/1490nmRX bi-directional (BiDi) single-mode fiber (SMF) SC connector, which allows distance reach up to 60km. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-BXD fiber, while extending the network reach beyond the 100m reach limitation of copper. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.

  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • No hassle of internal installation, install externally
Brand
Brand AddOn
Power & Battery
Input Voltage 5 V DC
Power Source AC/DC
Networking & Connectivity
Network Technology 1000Base-BX-D
USB Ports
USB No
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Size / Dimensions
Form Factor External
General Features
Maximum Data Transfer Rate 1 Gbit/s
Maximum Distance Supported 60 km
Manufacturer AddOn
Video Ports
DVI No
Misc Ports
Management Port No
Total Number of Ports 2
Number of SC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Fiber Mode Supported Single-mode
Fiber Optic Cable Wavelength 1490 nm
Compliance & Certification
TAA Compliant No
