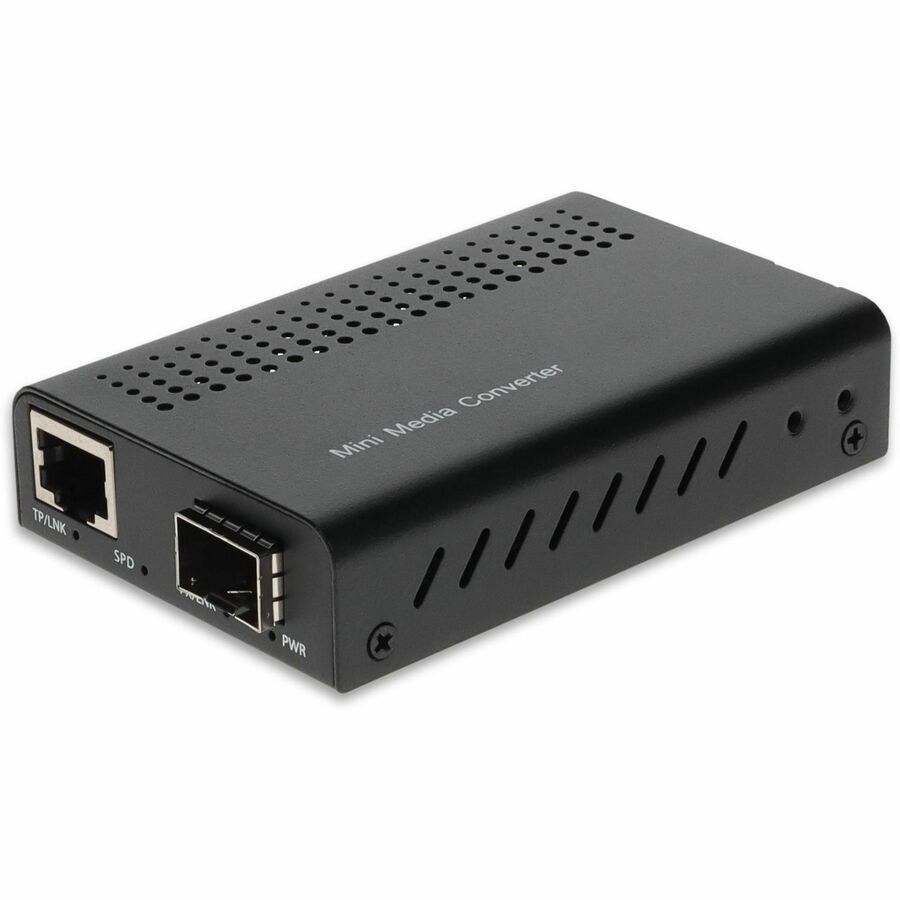

This is a mini media converter that converts a 100M/1G/2.5G/5G/10GBase-N(RJ-45) to 10GBase-X via an Open SFP+ Port. The Open SFP Port allows users to customize between the SR, LR, or BX connections. This media converter provides a cost effective conversion from 100M/1G/2.5G/5G/10GBase-N(RJ-45) to 10GBase-X, while extending the network reach beyond the 100m reach limitation of copper and saving space (3.75" x 2.25" x 1"). Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Connect different types of media within a network with this single port
- With 10GBase-X technology get up to 10Gbps data transfer rate over supported network cable
| Brand | |
|---|---|
| Brand | AddOn |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Power Source | AC/DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-N |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 0.10 km |
| Manufacturer | AddOn |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
