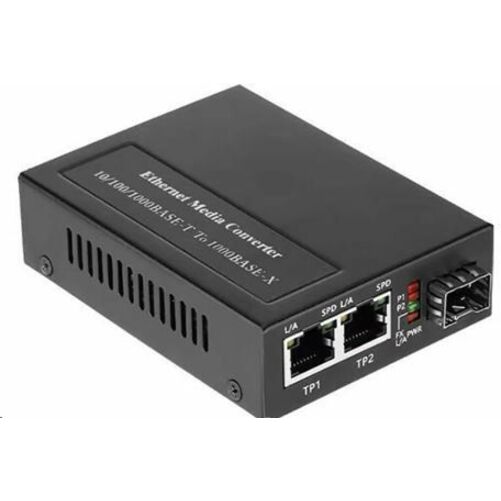

The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
- 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
- IEEE802.3at PoE+ PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support"
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| Power & Battery | |
|---|---|
| Power Source | AC/DC |
| Power Consumption | 60 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 0.55 km |
| Manufacturer | Axiom Memory Solutions |
| Expansion Slots | |
|---|---|
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Number of LC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
