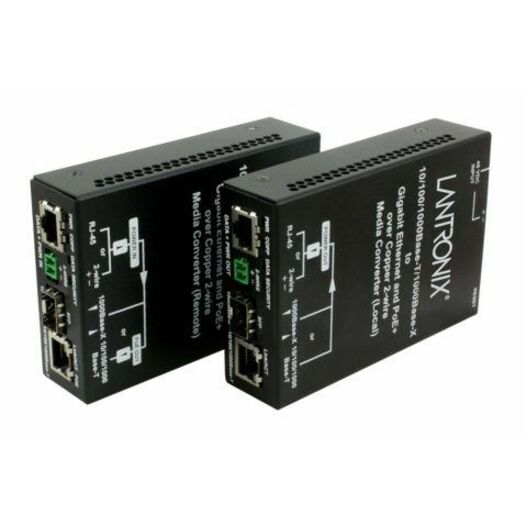

Lantronix Ethernet Over 2-Wire Extender With PoE+ provides the ability to quickly and easily upgrade Ethernet networks with modern PoE powered IP devices without the need to replace the existing copper wire infrastructure. The extenders leverage existing 18-24 AWG unshielded twisted pair CAT 5, CAT 3 and other twisted 2-wire phone wire cabling infrastructure to extend the Ethernet network at half Gigabit speeds and provide data and power to IP devices in remote locations, saving time and money over installing new cable. NDAA Compliant, TAA Compliant
- Preserves investment in existing UTP or twisted 2-wire infrastructure
- Client for DHCP, DNS, NTP
- Connection for optional power on Remote device
- IPv4 and IPv6 supported
- Auto-MDI/MDIX
- 128 Bit AES encryption over 2-wire
- Can be managed through a single IP address
- Plug-and-Play installation
- Field upgradeable firmware
- Web browser configurable
- Auto Power Reset APR and power-saving mode
- Power monitoring
- Proprietary SELV classification prevents unintended power delivery to non-Transition Networks devices
- Half-Gigabit Ethernet speeds over UTP cable at distances of 330 feet 100m or Fast Ethernet speeds at approximately 1800 feet 550m dependent on wire gauge*
- Full PoE+ at 335-1,500 ft. over a single pair or 1,500-6,800 ft. over multiple pairs* dependent on cable type
- IEEE 802.3af/at compliant Remote PoE+ port for powering cameras or other remote devices
- Copper or fiber combo Ethernet port
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Input Voltage | 48 V DC |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Size / Dimensions | |
|---|---|
| Receiver Weight (Approximate) | 1.05 lb |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 128 MB/s |
| Maximum Extended Range | 6800 ft |
| Manufacturer | Lantronix, Inc |
Transition Networks Ethernet Over 2-Wire Extender With PoE+ - 2 x Network (RJ-45) - 6800 ft Extended Range
